Trunk / Liftgate Interior Trim Panel
>>
Service and Repair
>>

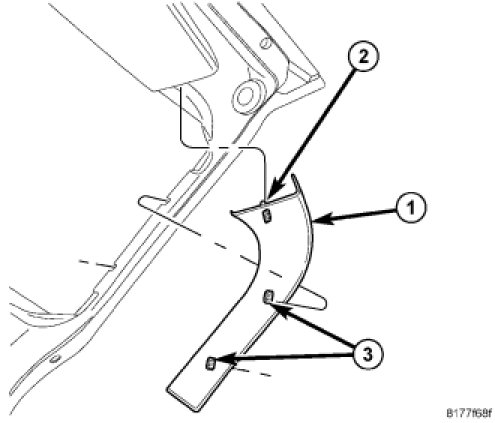

Liftgate Upper Side Molding
>>
Removal
Removal
REMOVAL
1.
Using trim stick C4755 or equivalent, pry up at each clip location.
2.
Remove upper side trim.
