Installation

INSTALLATION

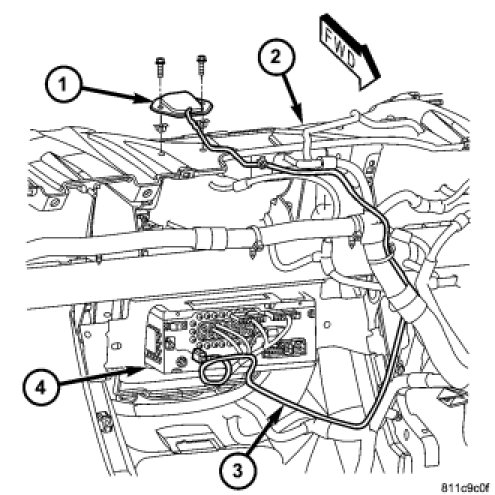

1. Position antenna cable (3) to wire harness. Secure into place.
2. Install antenna (1) mounting fasteners.
3. Install radio (4) Installation.
4. Install instrument panel top cover Instrument Panel Cover - Installation.
5. Connect battery negative cable.
