P012A

P012A-TURBOCHARGER INLET PRESSURE SENSOR

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
With the ignition on and battery voltage greater than 10 volts.

- Set Condition:
The PCM detects that the input voltage is not within a specified range based on operating conditions.

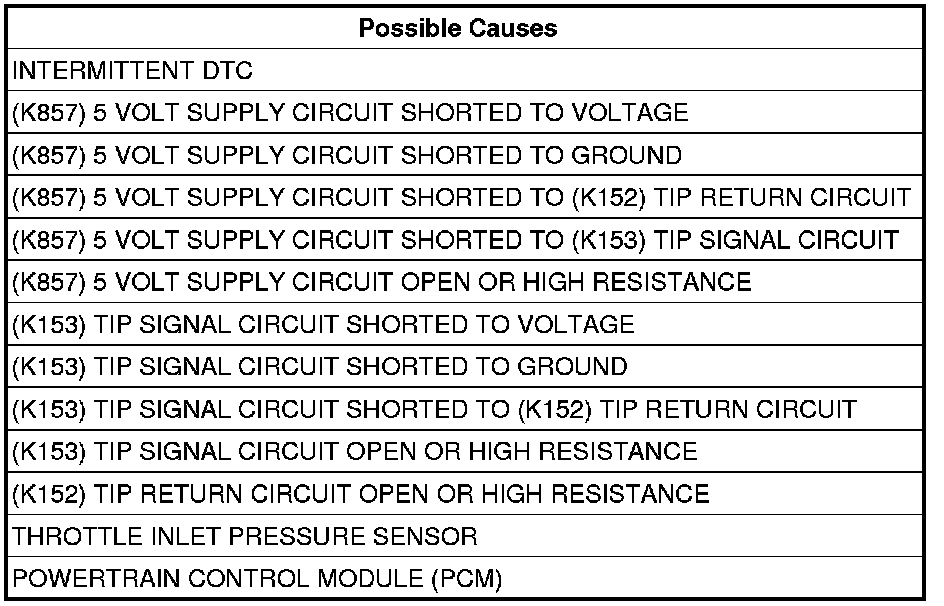

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.Initial Inspection and Diagnostic Overview

Diagnostic Test

1. DTC IS ACTIVE

NOTE: Diagnose and repair any system or supply voltage DTCs before continuing with this test.

Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

With the scan tool, select View DTCs.
Is the status Active for this DTC?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.Checking for an Intermittent DTC

2. (K857) 5 VOLT SUPPLY CIRCUIT VOLTAGE

Turn the ignition off.
Disconnect the Throttle Inlet Pressure Sensor connector.
Turn the ignition on.
Measure the voltage of the (K857) 5 Volt Supply circuit in the Throttle Inlet Pressure Sensor harness connector.

NOTE: The voltage should be 5.0 volts (plus or minus.1 volts).

Is the voltage displayed as described above?

Yes

- Go to 3

No

- Go to 10

3. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K153) TIP SIGNAL CIRCUIT

Disconnect the Powertrain Control Module (PCM) connector.
Measure the resistance between the (K857) 5 Volt Supply circuit and the (K153) TIP Signal circuit in the Throttle Inlet Pressure Sensor harness connector.
Is the resistance above 100 ohms?

Yes

- Go to 4

No

- Repair the (K857) 5 Volt Supply circuit for a short to the (K153) TIP Signal circuit.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

4. (K153) TIP SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition on.
Measure the voltage of the (K153) TIP Signal circuit in the Throttle Inlet Pressure Sensor harness connector.
Is there any voltage present?

Yes

- Repair the (K153) TIP Signal circuit for a short to voltage.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

No

- Go to 5

5. (K153) TIP SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.
Measure the resistance between ground and the (K153) TIP Signal circuit in the Throttle Inlet Pressure Sensor harness connector.
Is the resistance above 100 ohms?

Yes

- Go to 6

No

- Repair the (K153) TIP Signal circuit for a short to ground.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

6. (K153) TIP SIGNAL CIRCUIT SHORTED TO (K152) TIP RETURN CIRCUIT

Measure the resistance between the (K153) TIP Signal circuit and the (K152) TIP Return circuit in the Throttle Inlet Pressure Sensor harness connector.
Is the resistance above 100 ohms?

Yes

- Go to 7

No

- Repair the (K153) TIP Signal circuit for a short to the (K152) TIP Return circuit.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

7. (K153) TIP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K152) TIP Return circuit and the (K153) TIP Signal circuit in the Throttle Inlet Pressure Sensor harness connector.
Turn the ignition on.
With the scan tool, read the Throttle Inlet Pressure Sensor signal voltage.

NOTE: The voltage should be 0.0 volts (plus or minus.1 volts) with the jumper wire in place.

Is the voltage on the scan tool displayed as described above?

Yes

- Go to 14

No

- Go to 15

10. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.
Disconnect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Measure the voltage of the (K857) 5 Volt Supply circuit in the Throttle Inlet Pressure Sensor harness connector.
Is there any voltage present?

Yes

- Repair the (K857) 5 Volt Supply circuit for a short to voltage.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

No

- Go to 11

11. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Turn the ignition off.
Measure the resistance between ground and the (K857) 5 Volt Supply circuit in the Throttle Inlet Pressure Sensor harness connector.
Is the resistance above 100 ohms?

Yes

- Go to 12

No

- Repair the (K857) 5 Volt Supply circuit for a short to ground.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

12. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K152) TIP RETURN CIRCUIT

Measure the resistance between the (K857) 5 Volt Supply circuit and the (K152) TIP Return circuit in the Throttle Inlet Pressure Sensor harness connector.
Is the resistance above 100 ohms?

Yes

- Go to 13

No

- Repair the (K857) 5 Volt Supply circuit for a short to the (K152) TIP Return circuit.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

13. (K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.

Measure the resistance of the (K857) 5 Volt Supply circuit between the Throttle Inlet Pressure Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?

Yes

- Go to 15

No

- Repair the (K857) 5 Volt Supply circuit for an open circuit or high resistance.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

14. THROTTLE INLET PRESSURE SENSOR
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Inlet Pressure Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Search for any Technical Service Bulletins that may apply.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

No

- Replace the Throttle Inlet Pressure Sensor.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

15. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Inlet Pressure Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Search for any Technical Service Bulletins that may apply.
Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM VERIFICATION Test.Powertrain Verification Test

No

- Replace the Powertrain Control Module (PCM).
- Perform the PCM VERIFICATION Test.Powertrain Verification Test
