B210E

B210E-BATTERY VOLTAGE HIGH-(SKREEM)





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition switch on.

- Set Condition:

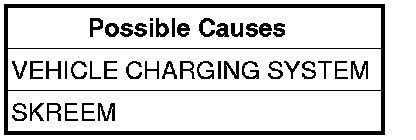

The SKREEM has detected the Fused (B+) input voltage above a calibrated value.





Diagnostic Test

1. DETERMINING IF DTC IS CURRENT
NOTE: Diagnose and repair all Powertrain DTCs before continuing.

Turn the ignition on.
With the scan tool, record and erase the SKREEM DTCs.
Perform 5 ignition cycles, leaving the ignition switch on for a minimum of 90 seconds per cycle.
Using the scan tool, read the SKREEM DTCs.
Does the DTC reset?

Yes

- Replace and program the SKREEM.
- Perform SKREEM VERIFICATION TEST Vehicle Theft Security Verification Tests.

No

- Perform SKREEM VERIFICATION TEST Vehicle Theft Security Verification Tests.
