Timing Chain Tensioner: Adjustments
ADJUSTMENT

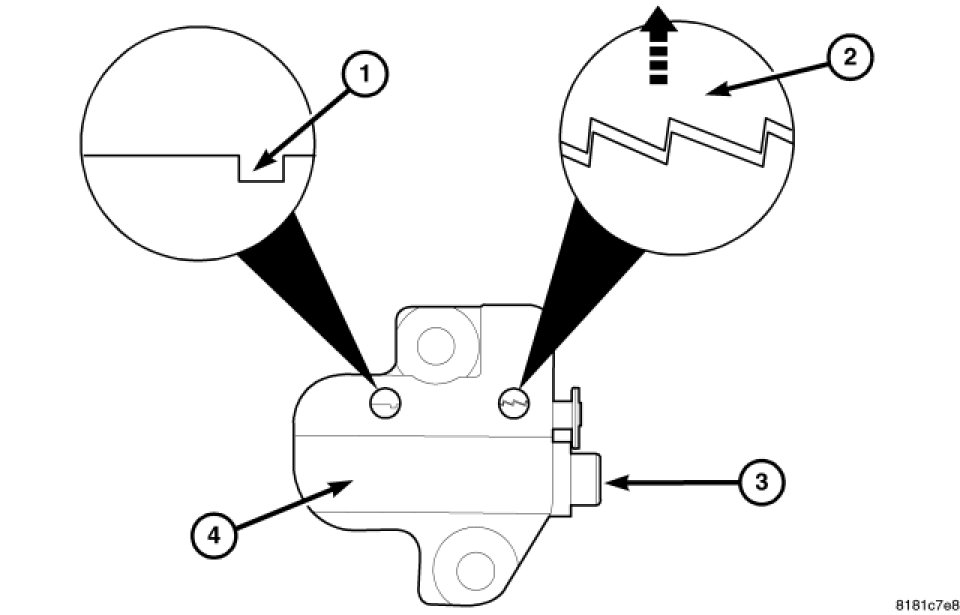

1. Raise ratchet (2) with small screw driver.
2. Push plunger (3) towards tensioner body (4).
3. Insert tensioner pin 8514 into slot (1). This will hold the tensioner in the retracted position.
ADJUSTMENT
1. Raise ratchet (2) with small screw driver.
2. Push plunger (3) towards tensioner body (4).
3. Insert tensioner pin 8514 into slot (1). This will hold the tensioner in the retracted position.
