Ladder Frame - Installation

INSTALLATION





NOTE: Parts must be assembled before within 10 before RTV skins.

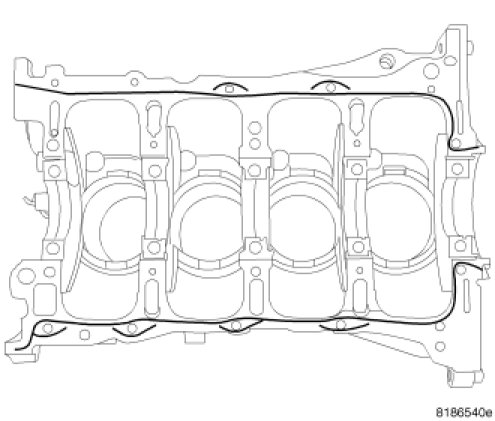

1. Apply a 2 mm bead of RTV as shown.

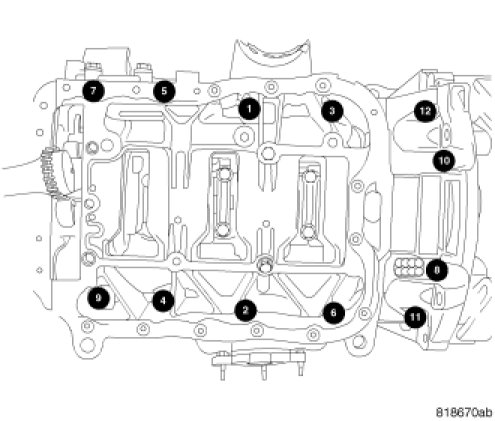

2. Install bolts and torque as shown following a two step method.
- First: All to 10 Nm (7ft. lbs.)
- Second: All to 22 Nm (16 ft. lbs.)

3. Install oil pumpEngine Oil Pump - Installation.
4. Install oil panEngine Oil Pan - Installation.
