Removal

REMOVAL




1. Remove the trim panel from the inside of the rear door. Refer to Trim Panel.

2. Remove the watershield from the inside of the rear door. Refer to Front Door Panel.

3. Remove the door glass channel and bracket from the inside of the rear door.

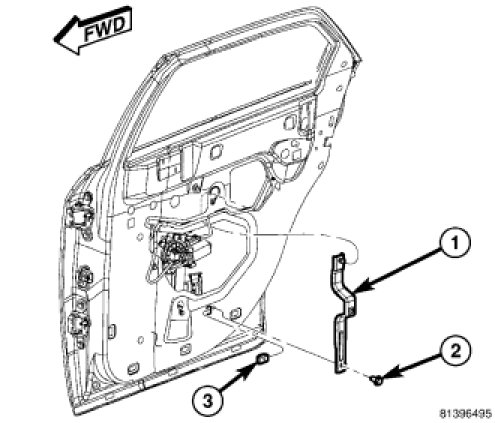

4. Remove the screw (2) that secures the bottom of the pull cup bracket (1) to the inside of the rear door.

5. Loosen the screw that secures the top of the pull cup bracket to the inside of the rear door.

6. Disengage the upper pull cup bracket screw from the keyed hole and remove the bracket from the inside of the rear door.

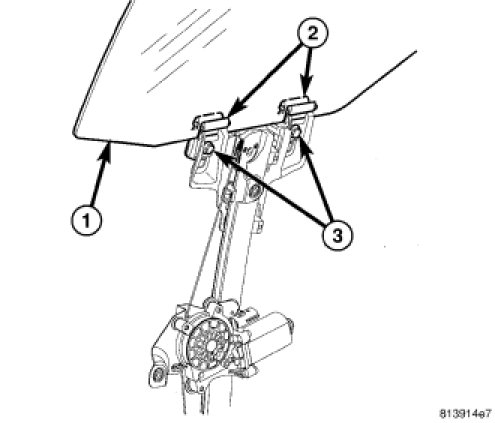

7. Using the regulator, adjust the rear door glass (1) position up or down as required for access to the two window regulator glass clamps (2).

8. Loosen the screw (3) in each of the glass clamps far enough to release the glass.

9. Lift the glass out of the regulator clamps and into its full up position, then tape the glass securely into place.

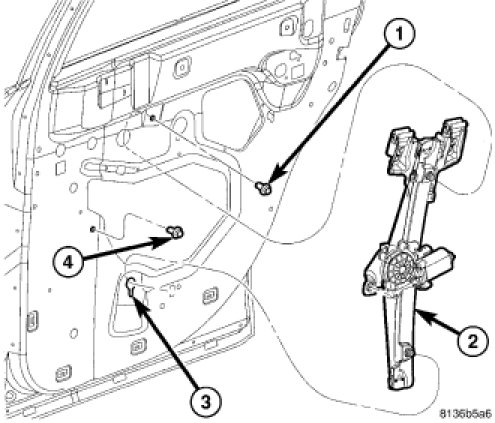

10. Remove the screw (1) that secures the top of the rear regulator rail (2) to the inside of the door.

11. Remove the screw (4) that secures the regulator motor support bracket to the inside of the door.

12. Loosen the screw that secures the bottom of the regulator rail to the keyed hole (3) on the inside of the door.

13. Lift the rear regulator rail upward within the door far enough to disengage the screw from the keyed hole in the door.

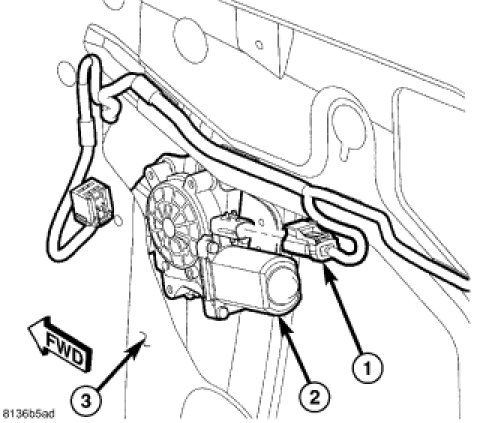

14. Lower the rear regulator within the door (3) far enough to access and disconnect the door wire harness connector (1) from the regulator motor (2) through the large access hole on the inside of the door near the front.

15. Remove the regulator through the large access hole on the inside of the door.
