Installation

INSTALLATION

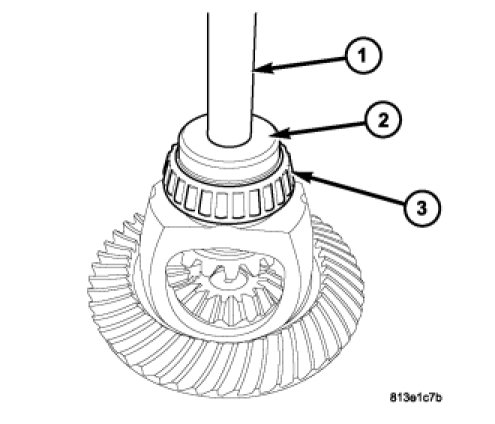

1. Using Installer 9523 and Handle C-4171, press differential side bearings onto differential case.

2. Install differential and reassemble axle assembly.
