Disassembly

DISASSEMBLY

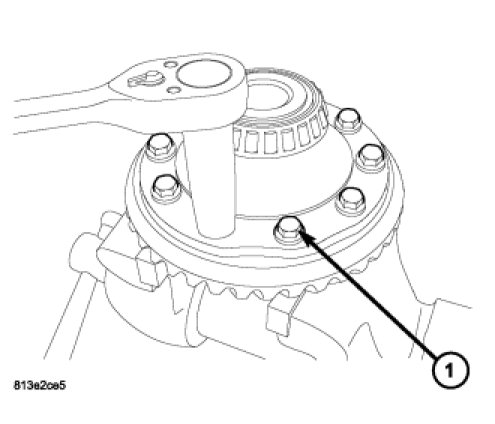

1. Remove differential ring gear-to-case bolts (1).




2. Using brass drift (1), remove ring gear (2).




3. Remove bearings (2) from the differential case (3) with Puller/Press C-293-PA (5), Adapters C-293-37 (1) and Puller Extension SP-3289 (4).




4. Install the differential to Mounting Plate 9630 (2) to the differential (1) and then install the assembly into a bench vise.

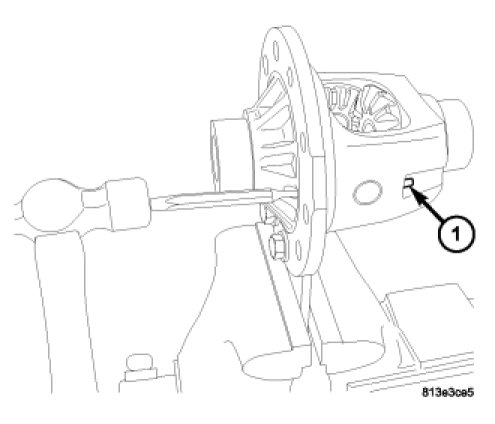

5. Drive out pinion shaft-to-case roll pin using hammer and suitable punch.

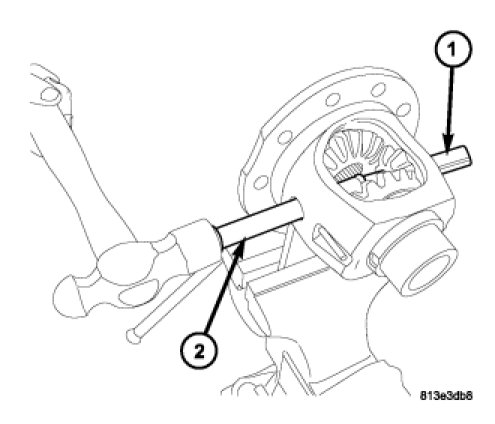

6. Using brass drift (2), drive out pinion shaft (1).

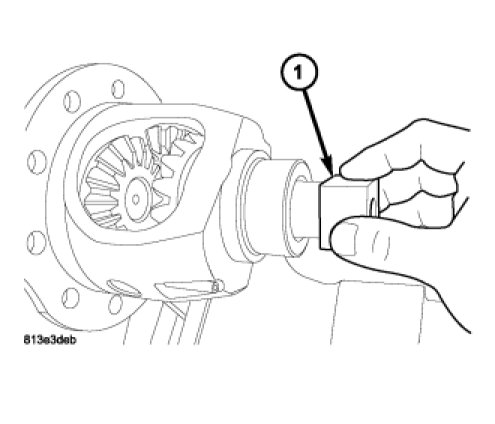

7. Install Fixture 9631 (1) into differential side gear.




8. Rotate Fixture 9631 (1) to gain access to and remove pinion gears and thrust washers.

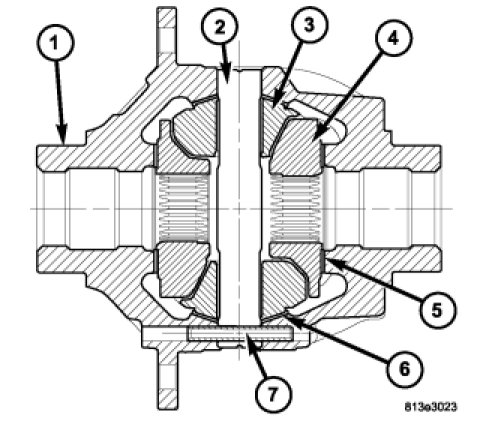

9. Remove differential side gears (4) and thrust washers (5).
