Removal

2.7L
1. Disconnect negative battery cable.





2. Remove generator drive belt.
3. Disconnect generator field circuit plug.

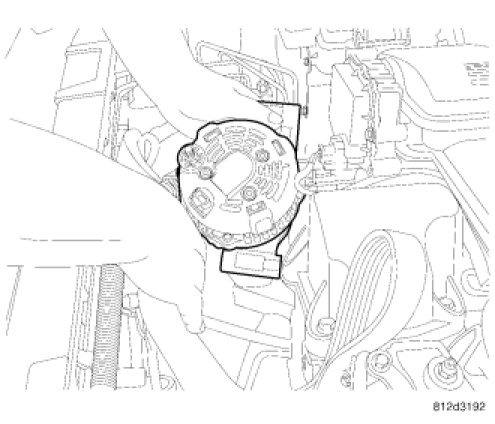

4. Remove B+ terminal nut and wire.

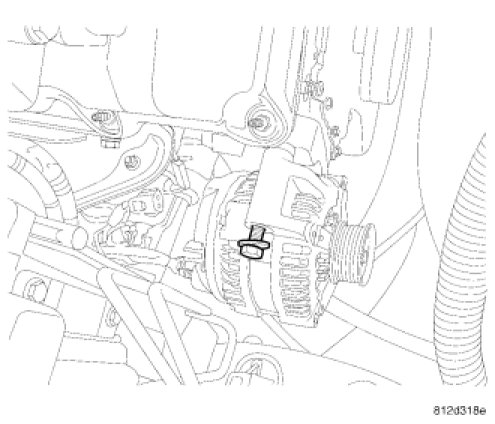

5. Remove 2 lower mounting bolts.





6. Remove upper bolt.





7. Remove generator.
