Front Axle - 175 FIA






SPECIFICATIONS - 175MM FIA FRONT AXLE

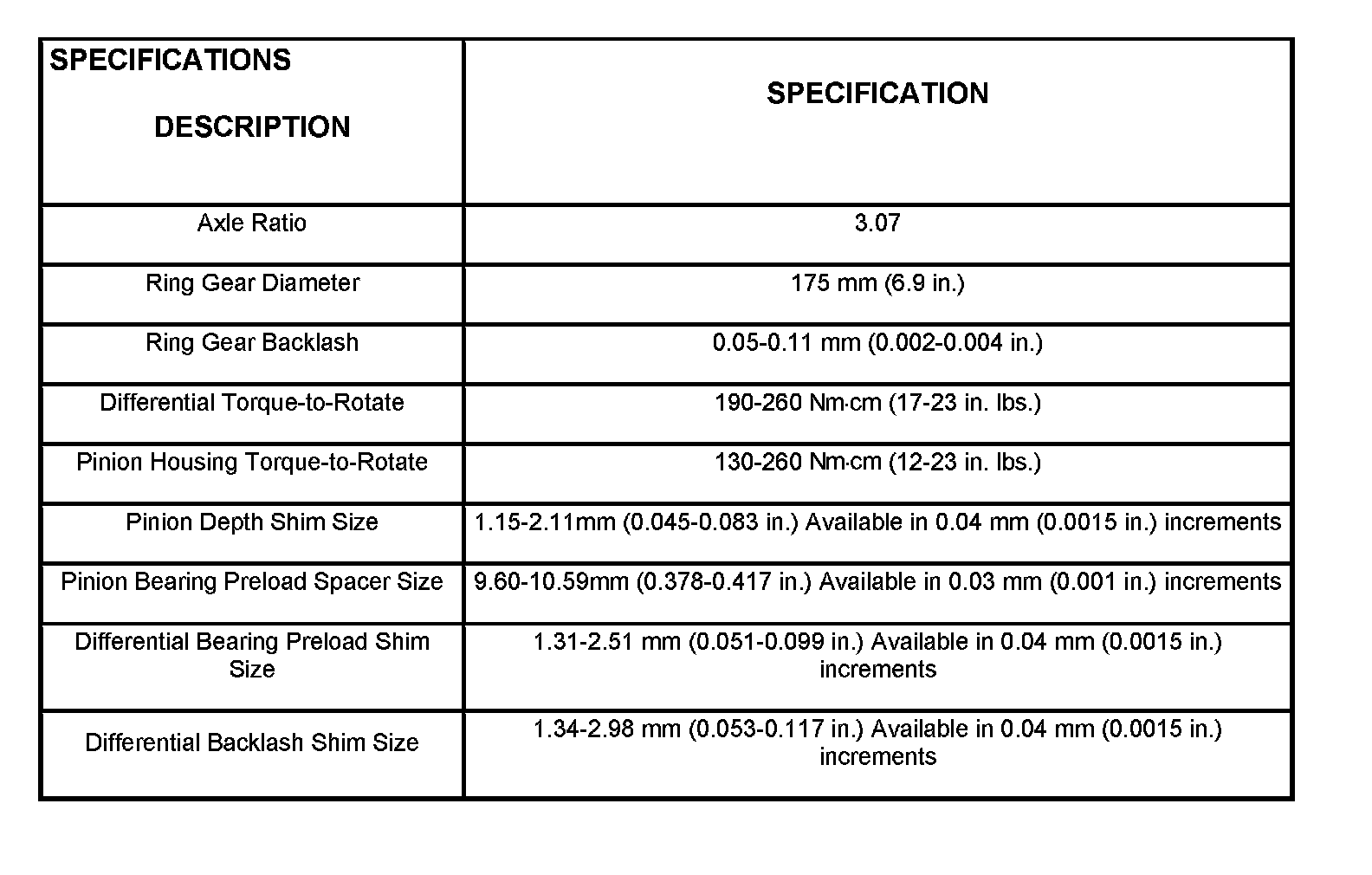

Axle Specifications:

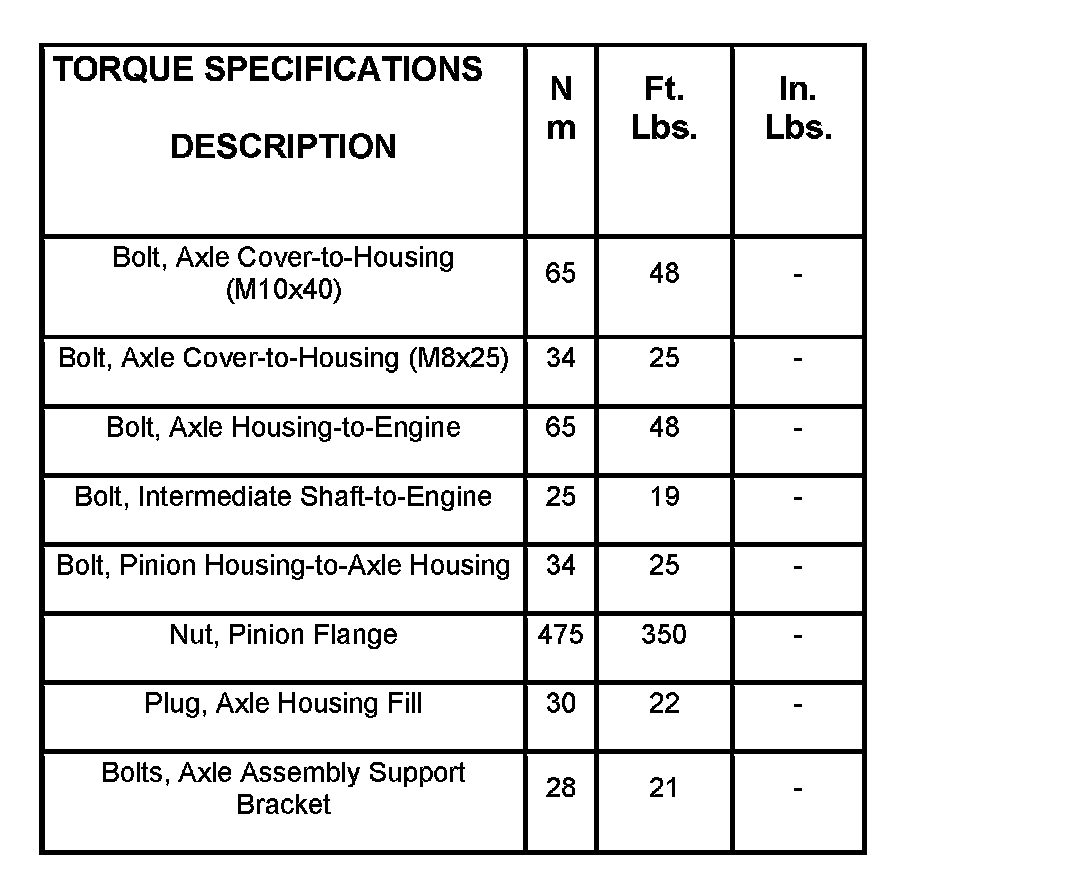

Torque Specifications:
