Transmission Mode Switch: Diagrams

Component ID: 565
Component : SWITCH-AUTOSTICK

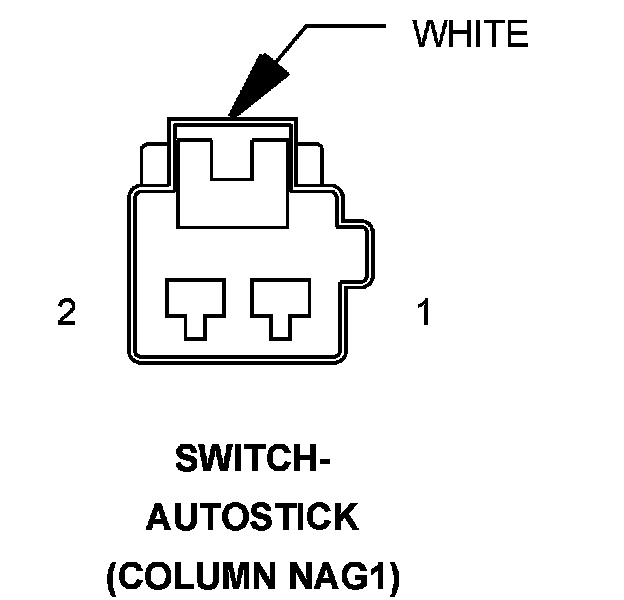

Connector:
Name : SWITCH-AUTOSTICK
Color : WHITE
# of pins : 2
Qualifier : (COLUMN NAG1)




Pin Description Circuit
1 AUTOSTICK SWITCH MUX SUPPLY 22YL
2 AUTOSTICK SWITCH MUX SIGNAL 22GY
