Solar Sensor: Diagrams

Component ID: 537

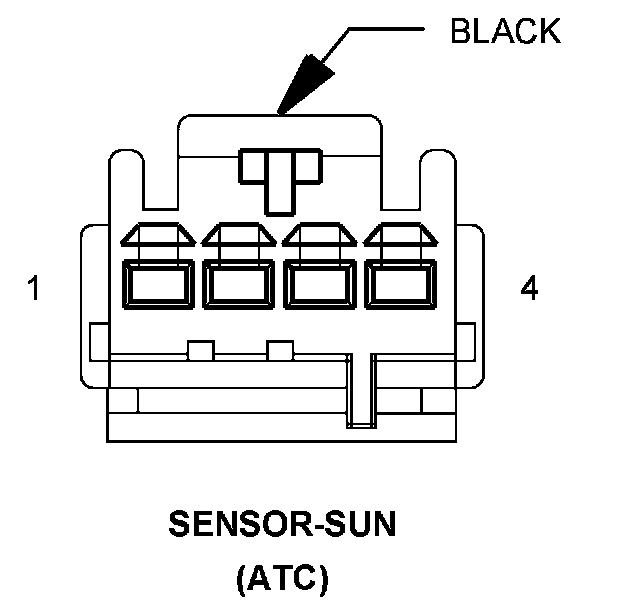

Component : SENSOR-SUN

Connector:
Name : SENSOR-SUN
Color : BLACK
# of pins : 4
Qualifier : (ATC)




Pin Description Circuit
1 SUN SENSOR SIGNAL 1 G39 20VT/LB
2 SUN SENSOR RETURN G939 20VT/DB
3 AUTO HEADLAMPS SIGNAL L24 20WT/VT
4 SUN SENSOR SIGNAL 2 G139 20VT/OR

Component Location - 37

Fig. 37:

Component Location - 38

Fig. 38:

Component Location - 45
