Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.

2. Raise and support the vehicle.

3. Remove the front end belly pan.

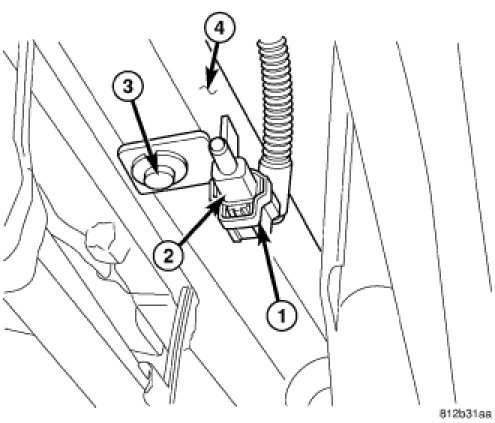

4. Disconnect the wire harness connector (1) from the ambient air temperature sensor (2).

5. Remove the push pin (3) that secures the ambient air temperature sensor to the bottom of the front bumper beam (4).

6. Remove the ambient air temperature sensor from the front bumper beam.
