Power Mirror Switch: Diagrams

Component ID: 578

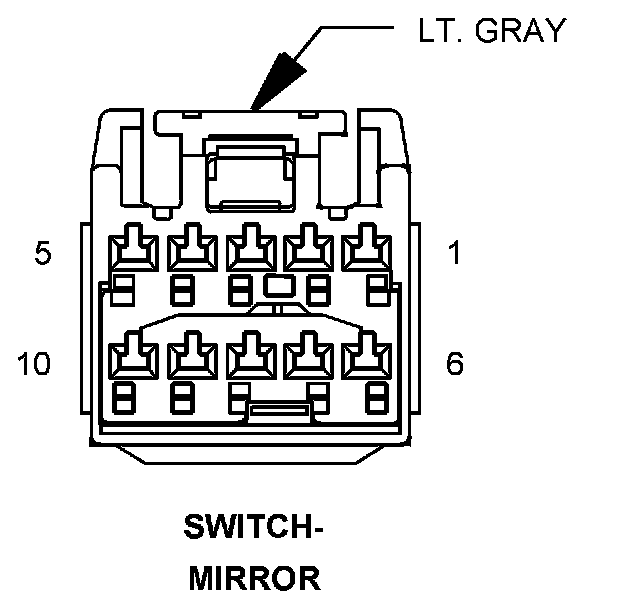

Component : SWITCH-MIRROR

Connector:
Name : SWITCH-MIRROR
Color : LT. GRAY
# of pins : 10




Pin Description Circuit
1 POWER FOLDING MIRROR RETURN P110 20LG/WT
2 FUSED ACCESSORY DELAY RELAY OUTPUT F880 20PK/DG
2 MIRROR SWITCH ILLUMINATION DRIVER E55 22OR/DG
3 MIRROR COMMON DRIVER P76 20TN/LB
3 MIRROR COMMON SWITCH SENSE P710 22LG
4 GROUND Z912 20BK/OR
4 MIRROR SWITCH RETURN P950 22TN/GY
4 MIRROR SWITCH RETURN P950 20TN/GY
5 FUSED B(+) A913 22RD
5 MIRROR SWITCH SUPPLY P550 22TN/LG
5 FUSED B(+) A913 20RD
6 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
6 MIRROR VERTICAL UP SWITCH SENSE P706 22LG/GY
7 DRIVER MIRROR VERTICAL DRIVER P71 22TN/DG
7 MIRROR VERTICAL DOWN SWITCH SENSE P705 22LG/OR
8 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
8 MIRROR HORIZONTAL RIGHT SWITCH SENSE P704 22LG/TN
9 DRIVER MIRROR HORIZONTAL DRIVER P75 22TN/LG
9 MIRROR HORIZONTAL LEFT SWITCH SENSE P703 22DB/LG
10 POWER FOLDING MIRROR DRIVER P699 20LG/DG

Component Location - 63
