Sensor-Park Assist 8

Component ID: 525

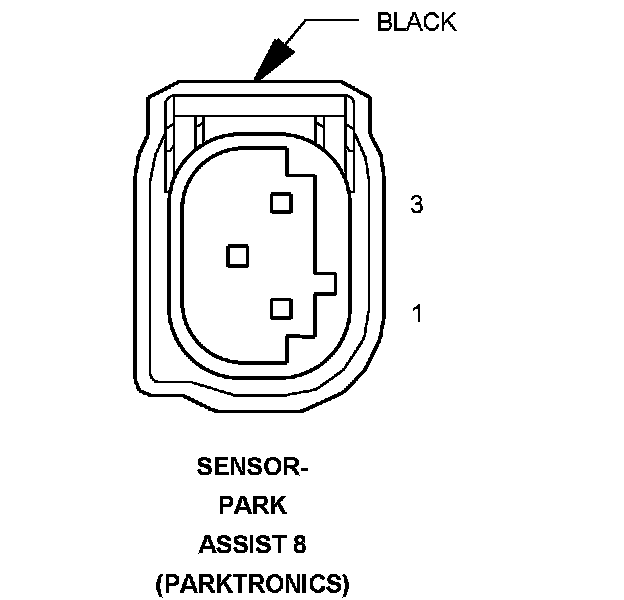

Component : SENSOR-PARK ASSIST 8

Connector:
Name : SENSOR-PARK ASSIST 8
Color : BLACK
# of pins : 3
Qualifier : (PARKTRONICS)




Pin Description Circuit
1 PARK ASSIST SIGNAL 8 D701 20WT/LB
2 PARK ASSIST SENSOR GROUND X750 20GY/LB
3 PARK ASSIST SENSOR SUPPLY X700 20GY/OR

Component Location - 89
