Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.

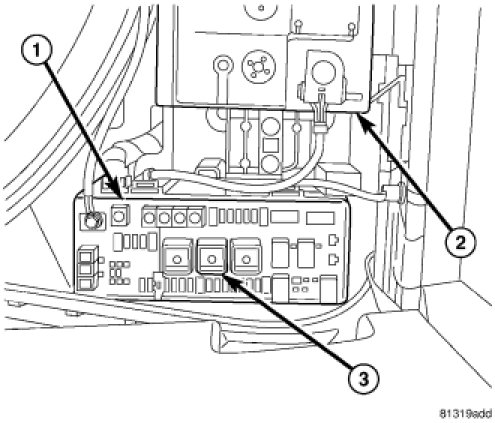

2. Open the cover of the power distribution center (PDC) (1) located at the rear of the vehicle near the battery (2).

3. Remove the EBL relay (3) from the PDC.
