Front

FRONT

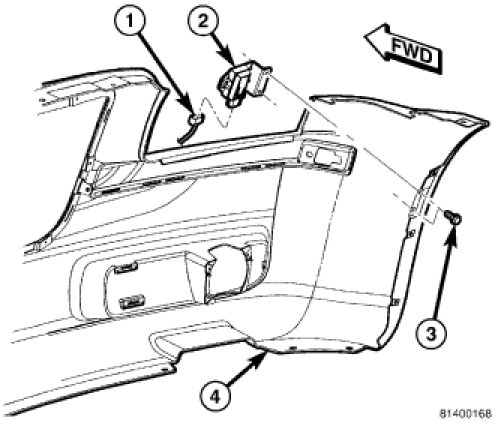

1. Position transponder (2) against front fascia (4) and install mounting screw (3).
2. Connect wiring harness connector (1) at transponder (2).
3. Install wheelhouse splash shield and all components removed to access it.
4. Perform TPM Diagnostic Verification Test. Verification Tests
