Transponder-Tire Pressure-Right Rear

Component ID: 602
Component : TRANSPONDER-TIRE PRESSURE-RIGHT REAR

Connector:

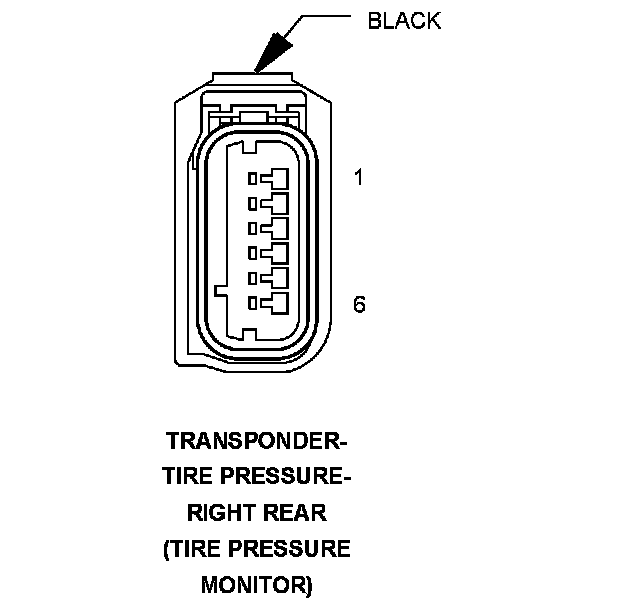

Name : TRANSPONDER-TIRE PRESSURE-RIGHT REAR
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Description Circuit
1 FUSED RUN RELAY OUTPUT F500 20DG/PK
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 GROUND Z911 20BK/WT
4 - -
5 - -
6 GROUND Z911 20BK/WT
