Transponder-Tire Pressure-Left Front

Component ID: 600
Component : TRANSPONDER-TIRE PRESSURE-LEFT FRONT

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT FRONT
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Description Circuit
1 FUSED RUN RELAY OUTPUT F500 20DG/PK
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 GROUND Z902 20BK/BR
3 GROUND Z902 20BK/LB
4 GROUND Z902 20BK/BR
4 GROUND Z902 20BK/LB
5 - -
6 - -

Component Location - 4

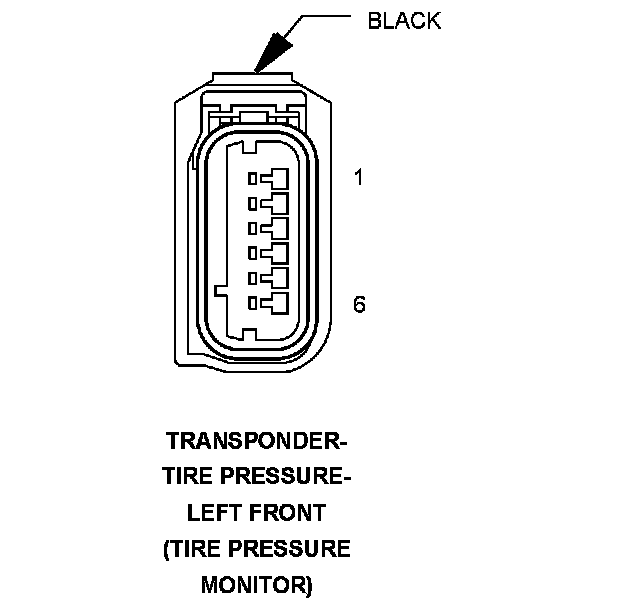

Fig. 4:
