Installation

INSTALLATION

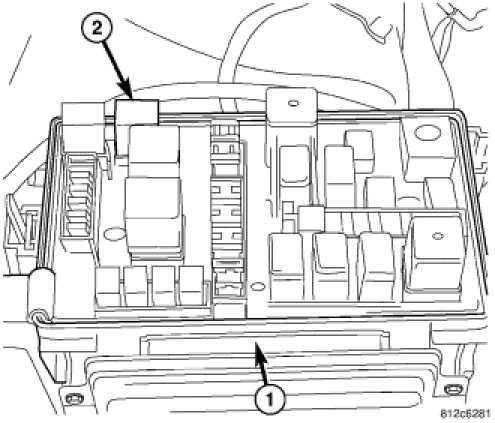

1. Position the A/C clutch relay (2) into the receptacle of the integrated power module (IPM) (1).

2. Align the A/C clutch relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the terminals are fully seated.

3. Close the cover of the IPM.

4. Reconnect the negative battery cable.
