Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

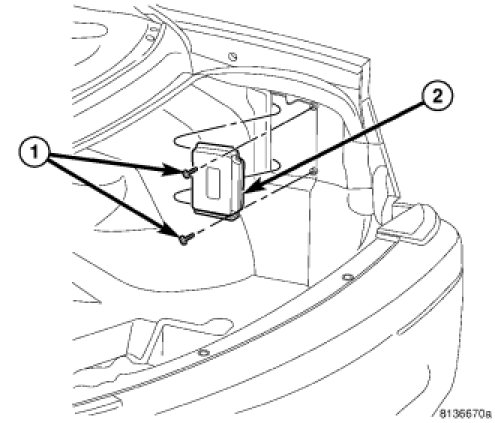

2. Peel back the right inner trunk carpet to expose the Park Assist Module (2).

3. Remove the two attaching screws (1) and separate the module (2) from the vehicle.





4. On the wagon, the module will be behind the right side D-pillar trim and is attached the same as the sedan.





5. Disconnect the Park Assist Module (2) electrical connector (1).
