Home >> Dodge >> 2007 >> Charger V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Camshaft Position Sensor >> Service and Repair >> Removal

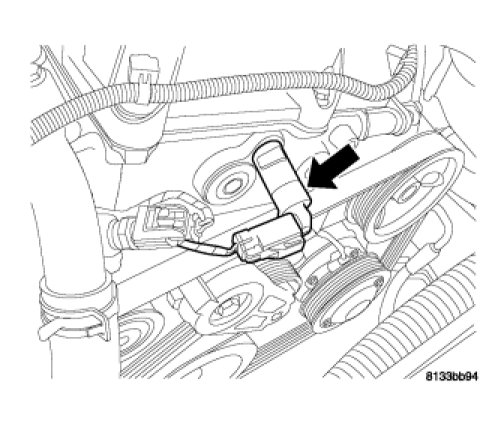

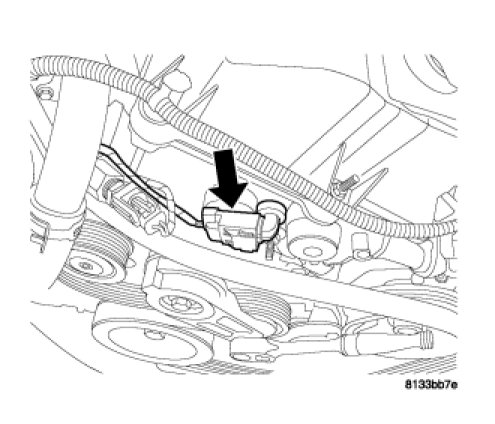

Removal






2.7L





1. Disconnect negative battery cable.

2. Unlock and disconnect electrical connector.





3. Remove mounting bolt.

4. Remove sensor.
