Installation

2.7L

CAUTION: Do not use spray (carb) cleaners on any part of the throttle body. Do not apply silicone lubricants to any part of the throttle body.

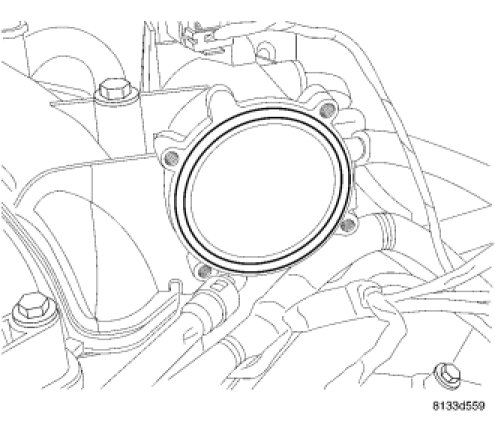

1. Install throttle body gasket.

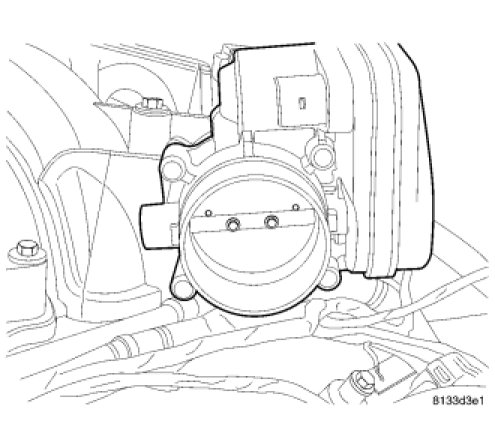

2. Install throttle body and bolts.

3. Tighten bolts to 11.9 Nm (105 in. lbs.) torque.

4. Connect electrical connectors.

5. Connect vacuum hoses.

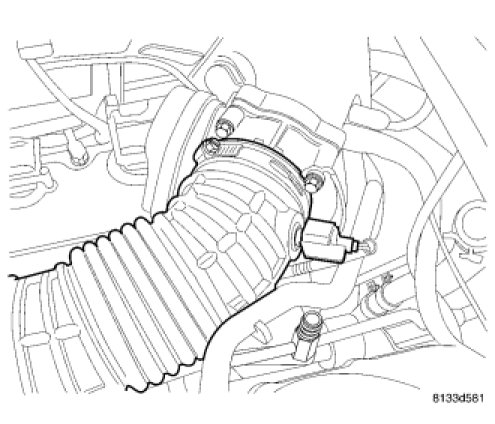

6. Install inlet hose and tighten clamp.

7. Connect negative cable to battery.

8. A Scan Tool may be used to learn electrical parameters. Go to the Miscellaneous menu, and then select ETC Relearn. If the relearn is not performed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any Diagnostic Trouble Codes (DTC's) from PCM.
