EGR Valve: Diagrams

Component ID: 18
Component : ASSEMBLY-EXHAUST GAS RECIRCULATION VALVE

Connector:
Name : ASSEMBLY-EXHAUST GAS RECIRCULATION VALVE
Color : BLACK
# of pins : 6
Qualifier : (GAS EXCEPT SRT8)




Pin Description Circuit
1 EGR SIGNAL K34 20DB/LG
2 5 VOLT SUPPLY F856 20YL/PK
3 SENSOR GROUND K900 20DB/DG
4 GROUND Z904 20BK/BR
5 - -
6 EGR CONTROL K35 20DB/VT

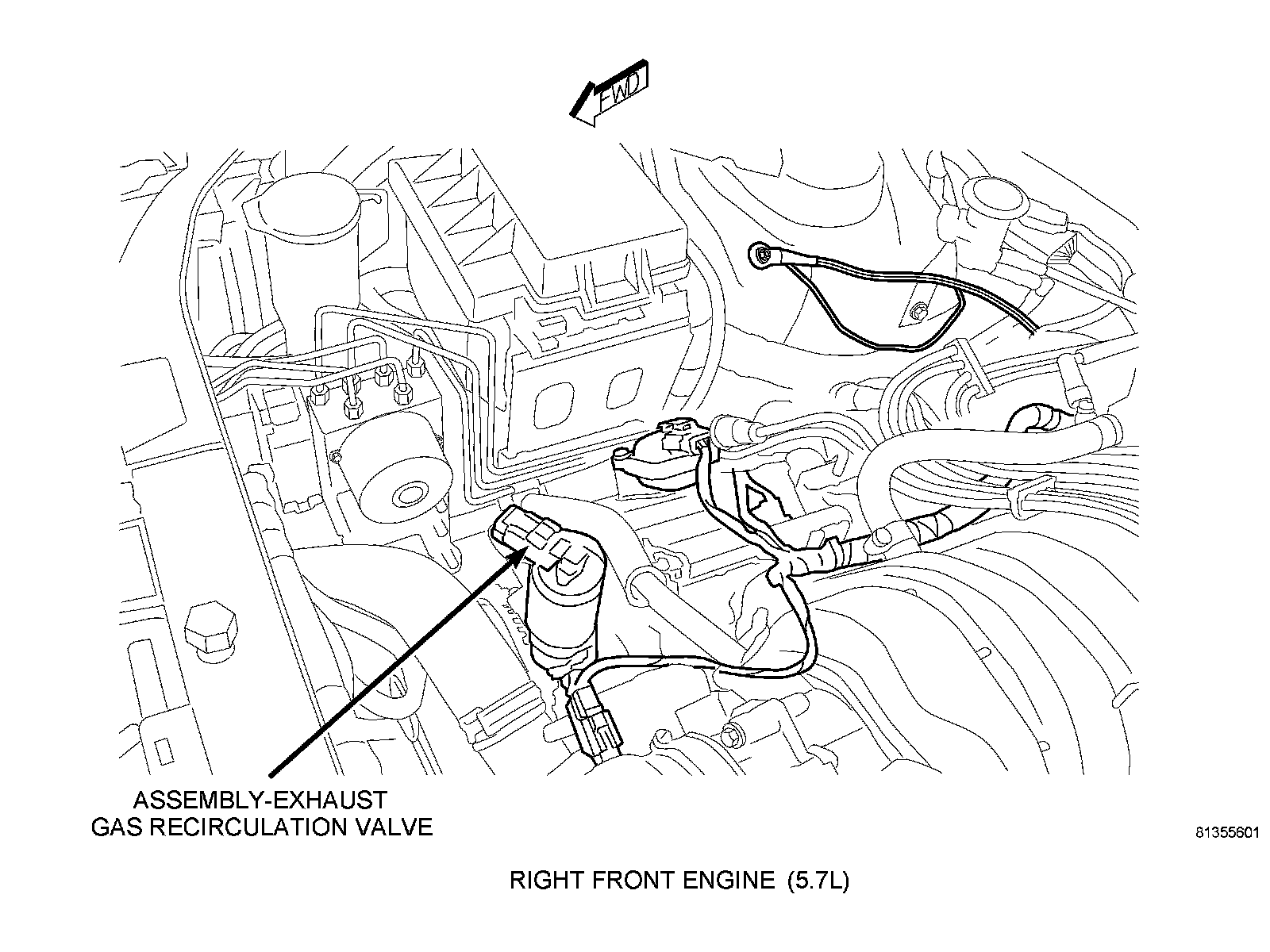

Component Location - 24




Component Location - 17




Component Location - 20
