Removal

REMOVAL

SEDAN





1. Disconnect and isolate the battery negative cable.

2. From inside the trunk, peel back the trunk trim and disconnect the electrical connector.

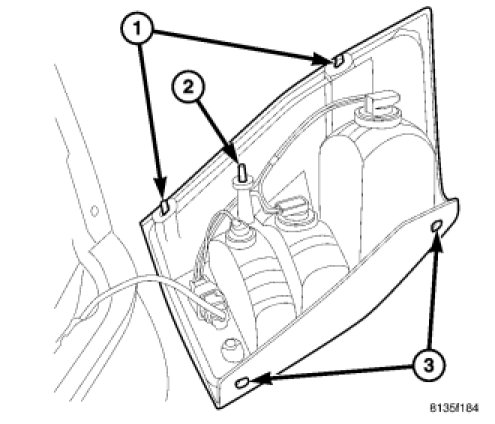

3. Remove the three plastic wing nuts (3).

4. Pull the tail lamp unit (1) straight out of the rear of the quarter trim panel.

WAGON





1. Disconnect and isolate the battery negative cable.

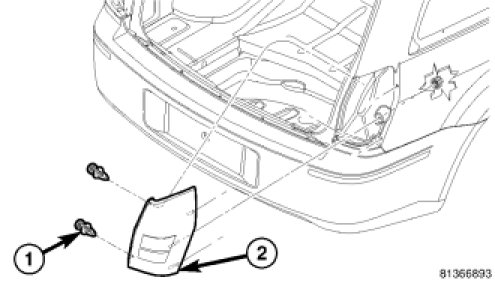

2. Remove the two push fasteners (1) in the liftgate opening.





3. From inside the cargo area, using a trim stick (special tool #C-4755) or equivalent, gently pry the access panel off the rear of the quarter trim panel.

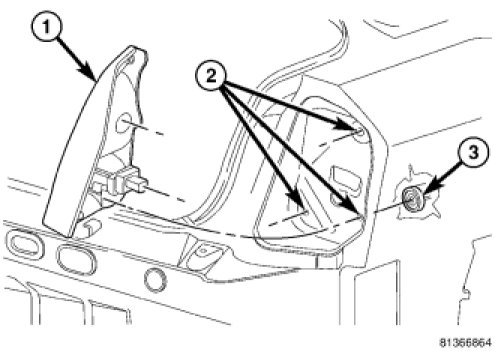

4. Remove the one plastic wing nut.





5. Pulling rearward, release the mounting tabs of the tail lamp unit (1).

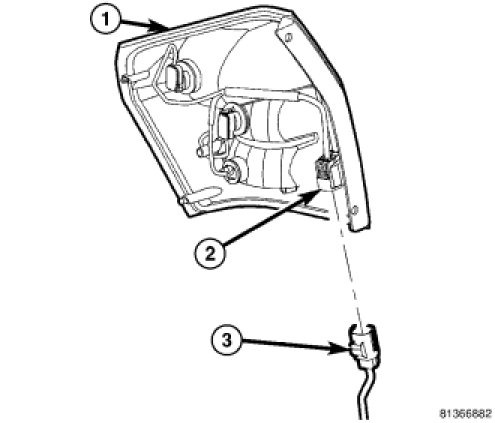

6. Disconnect the electrical connector (3) from tail lamp unit (1).

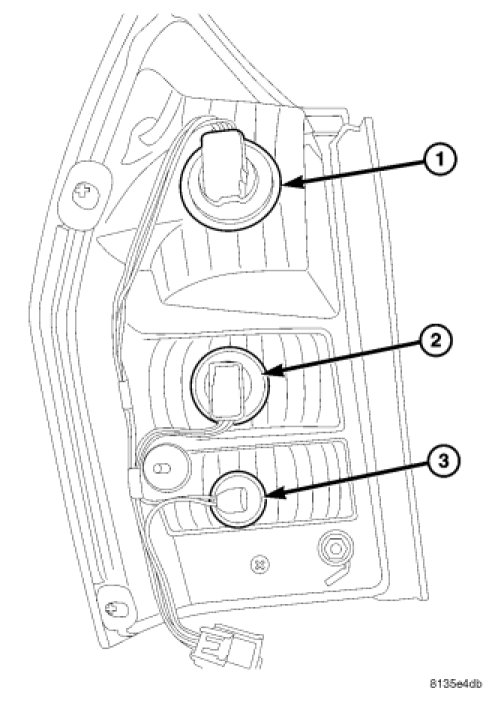

7. Twist counterclockwise to remove the Stop (1), Turn Signal (2), or Back-Up lamps.
