Installation

INSTALLATION

SEDAN

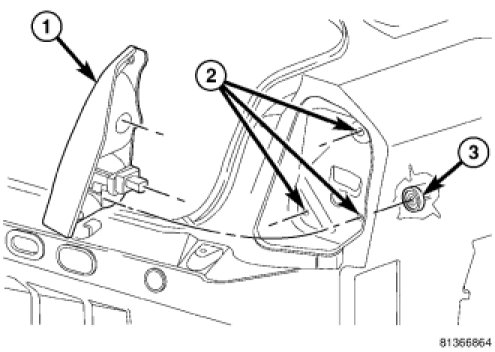

1. Position the tail lamp unit (1) in the rear quarter panel of vehicle.

2. Install and tighten the three plastic wing nuts (3).

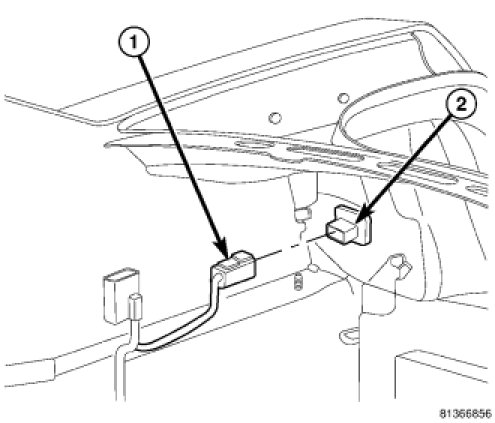

3. From within the trunk, connect the electrical connector (1) to tail lamp unit (2).

4. Replace trunk carpeting.

5. Connect the battery negative cable.

WAGON





1. Connect the electrical connector (3) to the tail lamp unit (2).





2. Position the tail lamp unit (2) in quarter panel opening.

3. Give a firm push forward to seat the indexing pins.

4. Install and tighten the one plastic wing nut.

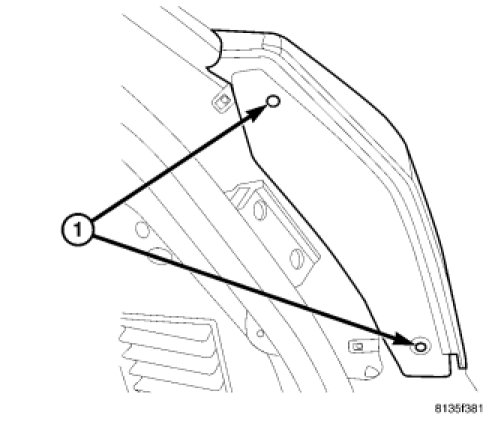

5. Install the two push pin fasteners (1) in the liftgate opening.

6. Connect the battery negative cable.
