Headlamp Switch: Diagrams

Component ID: 569

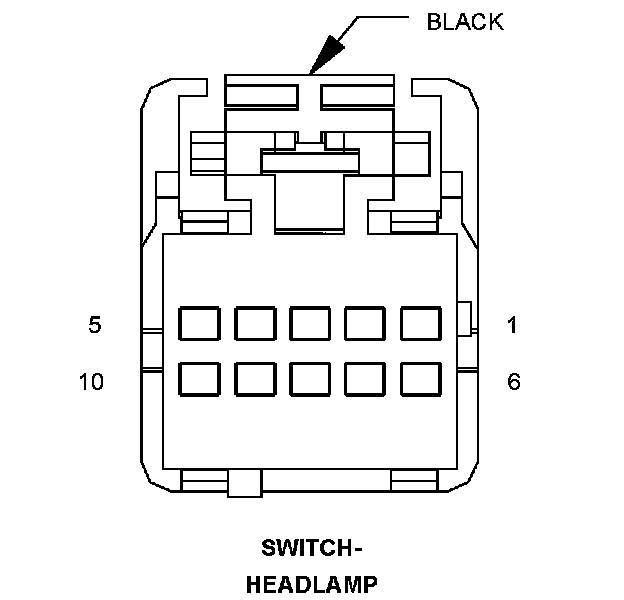

Component : SWITCH-HEADLAMP

Connector:
Name : SWITCH-HEADLAMP
Color : BLACK
# of pins : 10




Pin Description Circuit
1 HEADLAMP SWITCH MUX L307 20WT/BR
2 PANEL LAMPS DIMMER SIGNAL E2 20OR/BR
3 HEADLAMP SWITCH MUX RETURN L900 20WT/YL
4 PANEL LAMPS DRIVER E12 20OR/GY
5 GROUND Z910 20BK/TN
6 - -
7 - -
8 - -
9 - -
10 - -

Component Location - 44




Component Location - 37

Fig. 37:

Component Location - 39

Fig. 39:
