Instrument Panel Cluster Bezel - Removal

DODGE




1. Before proceeding with the following repair procedure, review all warnings and cautions.

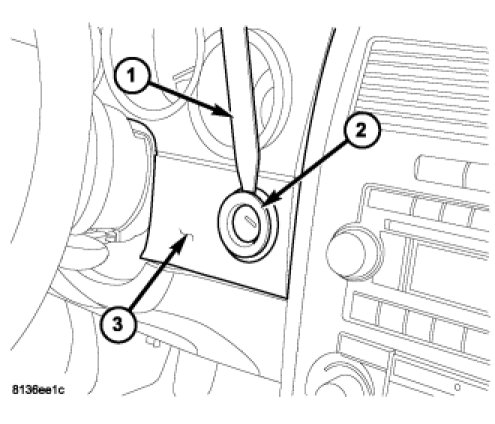

2. Using a trim stick C-4755 or equivalent (1), gently pry between the ignition switch bezel (2) and the instrument cluster bezel (3) to release the snap retainers that secure the switch bezel.

3. Disconnect the wire harness connector from the headlamp switch (4) and remove the cluster bezel from the vehicle.

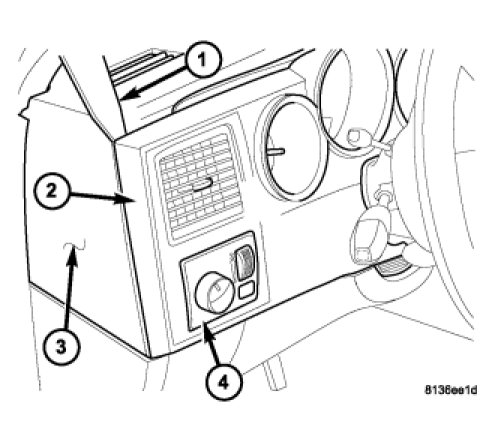

4. Using a trim stick C-4755 or equivalent (1), gently pry between the cluster bezel (2) and the instrument panel (3) to release the snap clip retainers that secure the cluster bezel.

5. If required, remove the headlamp switch from the cluster bezel

6. Remove the ignition switch bezel from the vehicle.
