Instrument Panel Cluster Bezel - Installation

INSTALLATION

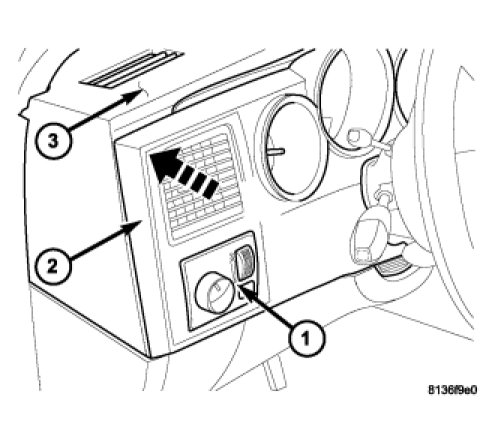

1. If removed, install the headlamp switch (1) into the cluster bezel (2)

2. Position the cluster bezel into the vehicle and connect the wire harness connector to the headlamp switch.

3. Install the cluster bezel onto the instrument panel (3) and carefully push on the cluster bezel to fully seat the snap clip retainers into the instrument panel.

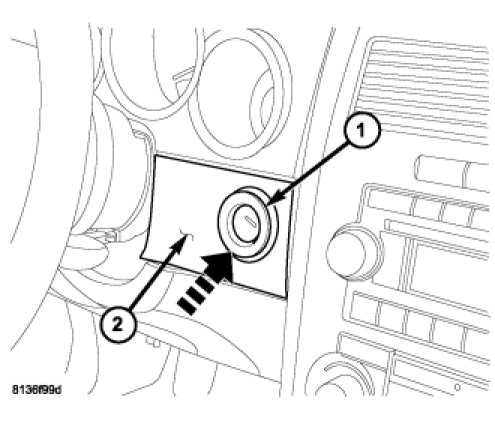

4. Position the ignition switch bezel (1) into the cluster bezel (2).

5. Carefully push on the ignition switch bezel to engage the snap retainers that secure the switch bezel.
