Instrument Cluster Lens - Installation






INSTALLATION

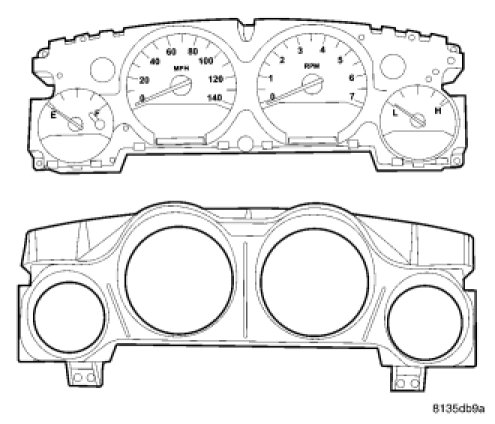

1. Place cluster lens into position on cluster.

2. Install the cluster lens screws.

3. Install the cluster bezel.

4. Connect the battery negative cable.
