Installation

INSTALLATION




1. Inspect and clean timing chain cover sealing surfaces.

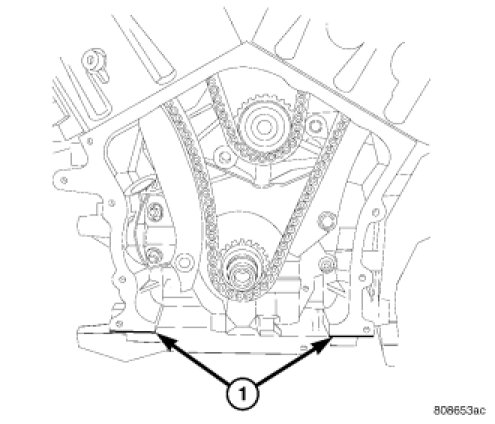

2. Before installing timing cover gasket apply a 1/8 inch bead of Mopar(R) Engine RTV GEN II to the parting lines between the oil pan and cylinder block (1).




3. Install timing cover (2) and gasket (1). Tighten M10 cover bolts (4) to 54 Nm (40 ft. lbs.) and M6 bolts (3) to 12 Nm (105 in. lbs.).
4. Install front crankshaft oil seal using Special Tool 6780-2 sleeve and 6780-1 installer.
5. Install crankshaft vibration damper.
6. Install accessory drive belts.




7. Install lower splash shield (2) and retaining bolts (1).




8. Lower vehicle.
9. Fill cooling system.
10. Connect negative battery (1) cable.
