TENSIONER-TIMING CHAIN





NOTE: Verify proper timing alignment prior to tensioner installation.

1. Reset tensioner.

NOTE: Inspect tensioner o-ring and snap ring, replace as necessary.

2. Install tensioner (1) in cylinder head.

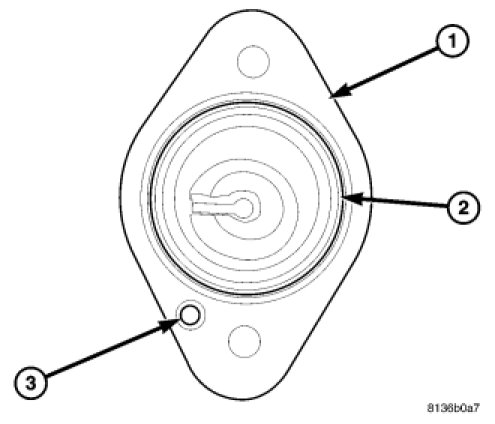

NOTE: Tensioner retaining plate dowel pin (3) must be aligned with hole in cylinder head for proper installation.

3. Inspect tensioner retaining plate o-ring (2) and replace as necessary.




4. Install tensioner retaining plate (2) and attaching bolts (3). Tighten bolts to 12 Nm (105 in. lbs.).
