Installation

INSTALLATION





CAUTION: Crankshaft position must be at 60� ATDC of No.1 cylinder before installing oil pump (1). This position will properly locate oil pump. If not properly located, severe damage to oil pump can occur.

1. Prime oil pump before installation by filling rotor cavity with engine oil.

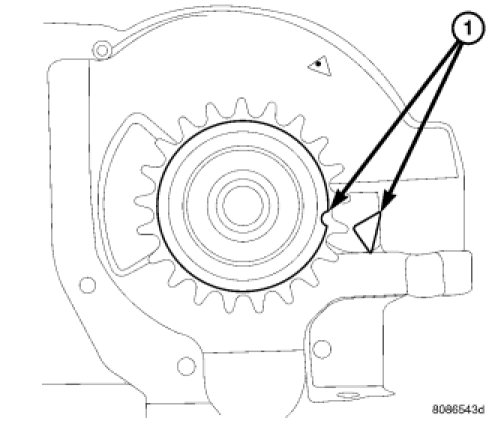

2. If crankshaft has been rotated, it must be repositioned to 60� ATDC of No.1 cylinder (1) prior to oil pump installation.

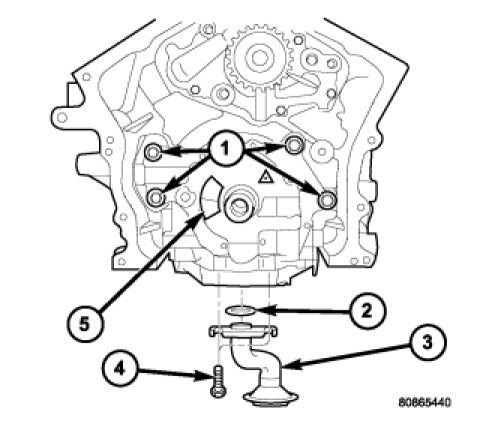

3. Install oil pump (5) carefully over crankshaft and into position.
4. Install oil pump attaching bolts (1). Tighten bolts to 28 Nm (250 in. lbs.).
5. Install oil pick-up tube (3) with new O-ring (2). Lubricate O-ring (2) with clean engine oil before installation. Tighten attaching bolts (1) to 28 Nm (250 in. lbs.).
6. Install oil pan.
7. Install timing chain and sprockets.
8. Install timing chain cover.
9. Install crankshaft vibration damper.
10. Fill crankcase with engine oil to correct level.
