Operation

OPERATION

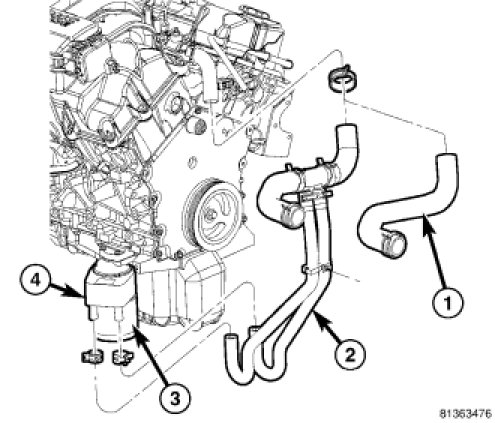

Engine oil travels from the oil cooler (4) and into the oil filter (3). Engine oil then exits the filter into the main gallery. Engine coolant flows from the upper radiator hose to and from the cooler through hoses (2) and back to the upper radiator hose.
