Home >> Dodge >> 2007 >> Charger V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> 42RLE Automatic Transmission >> 42RLE - With Variable Line Pressure

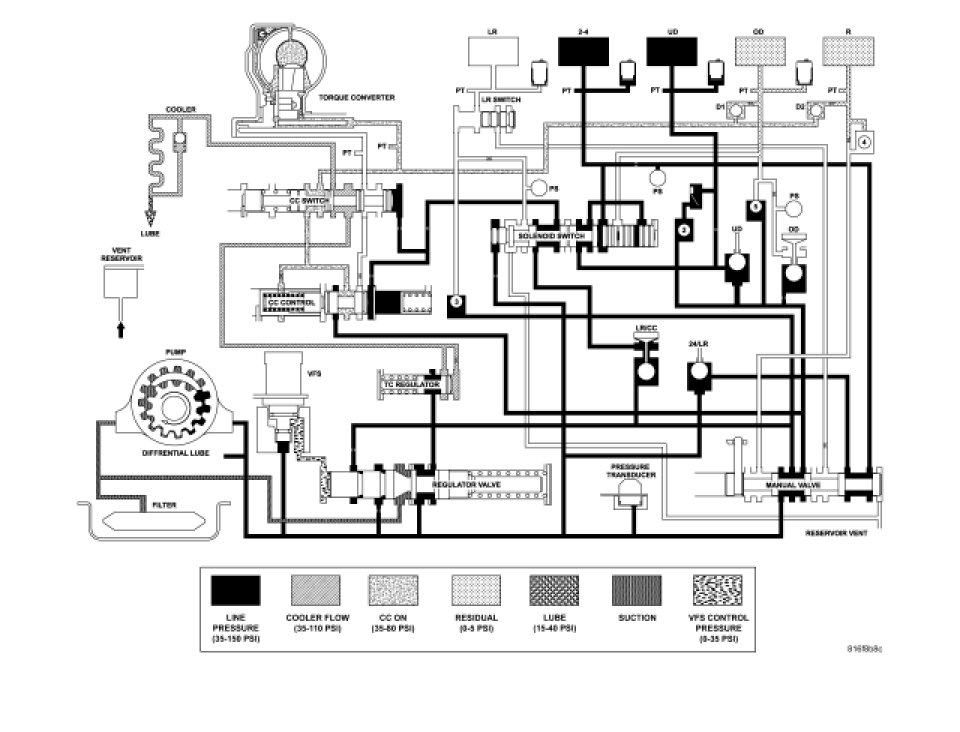

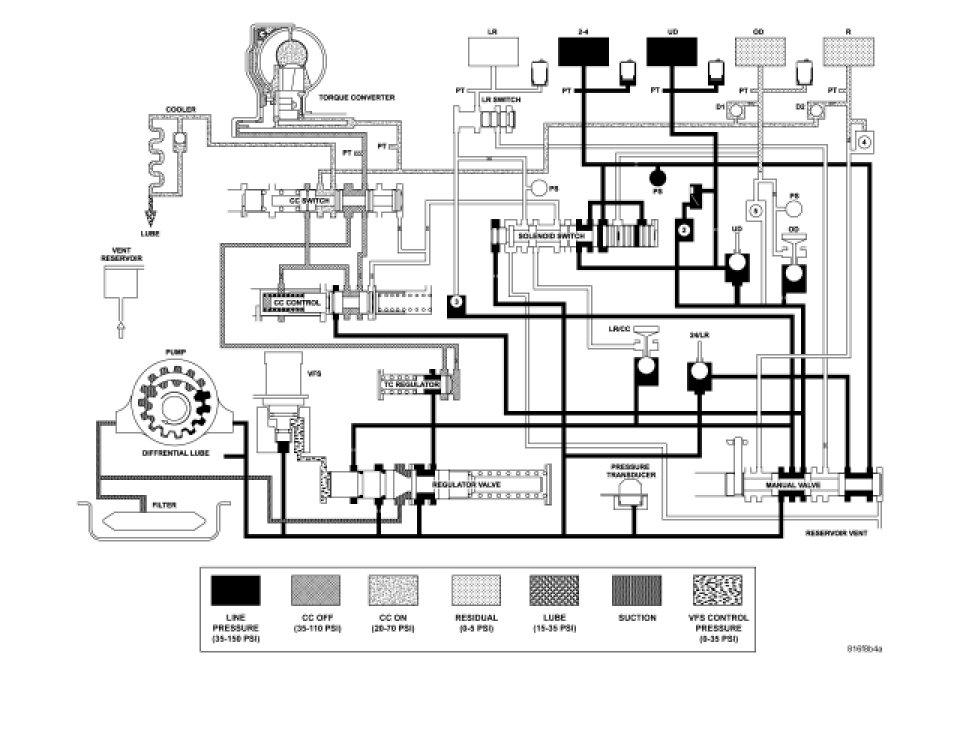

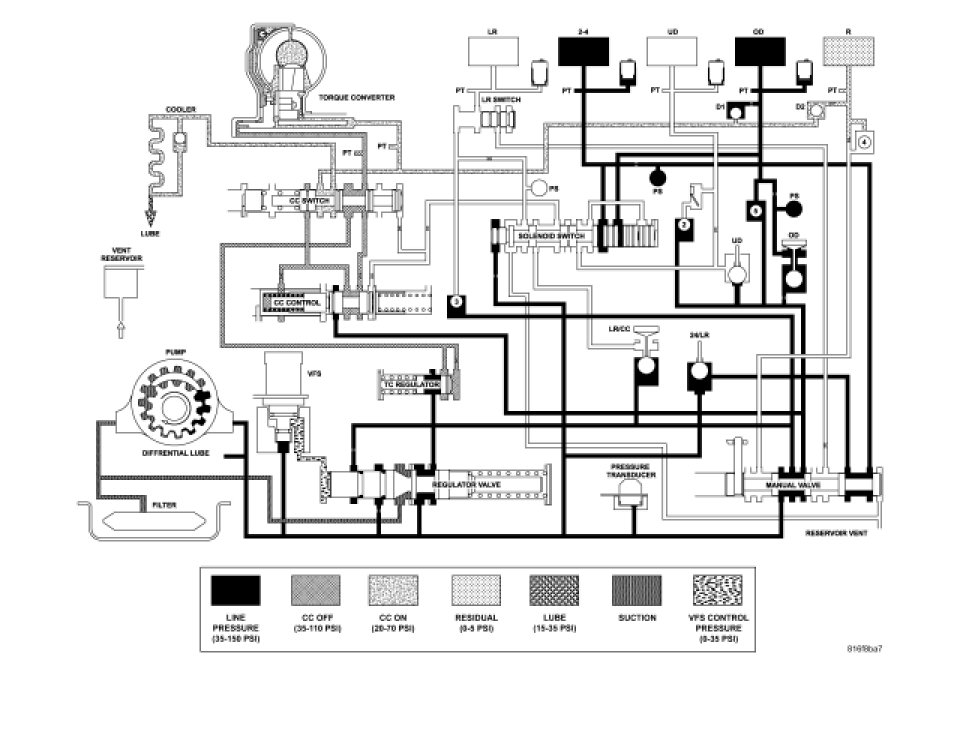

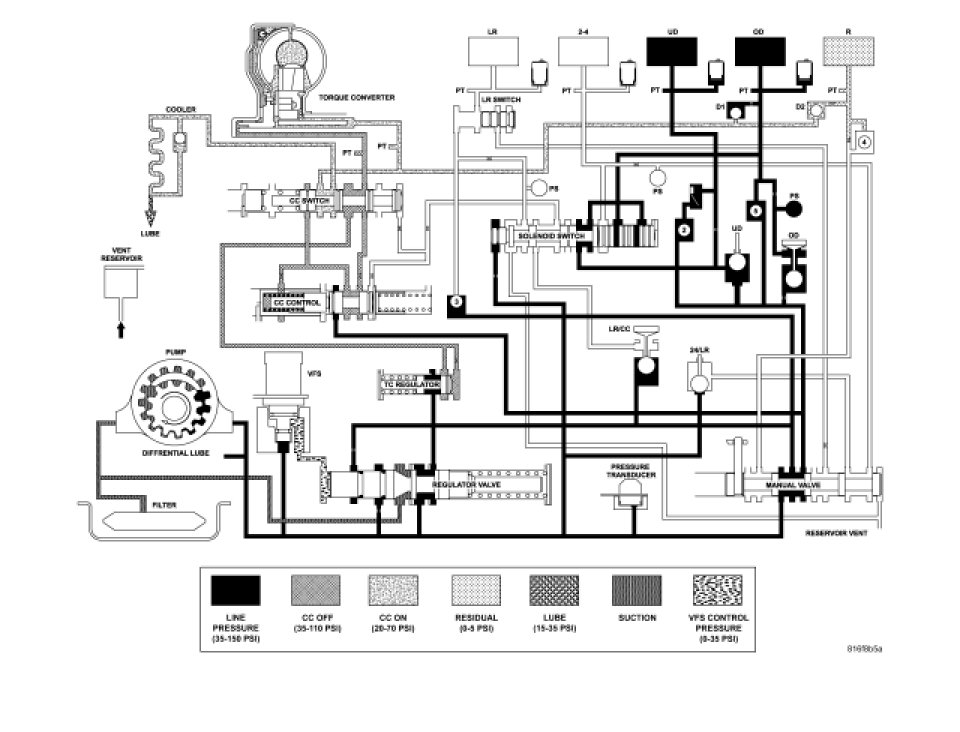

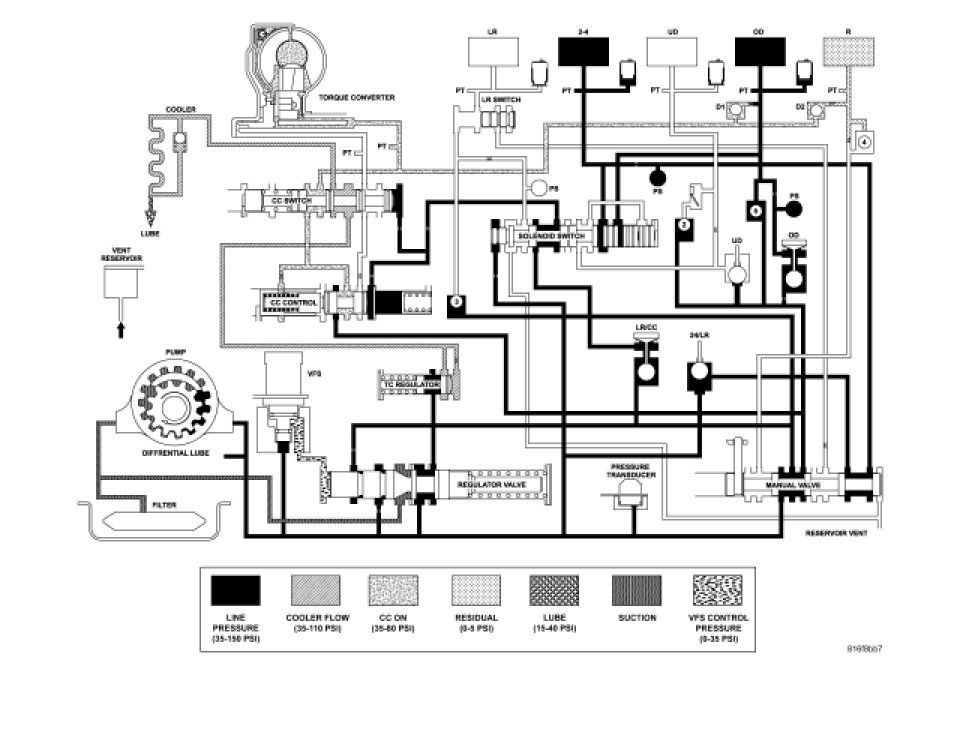

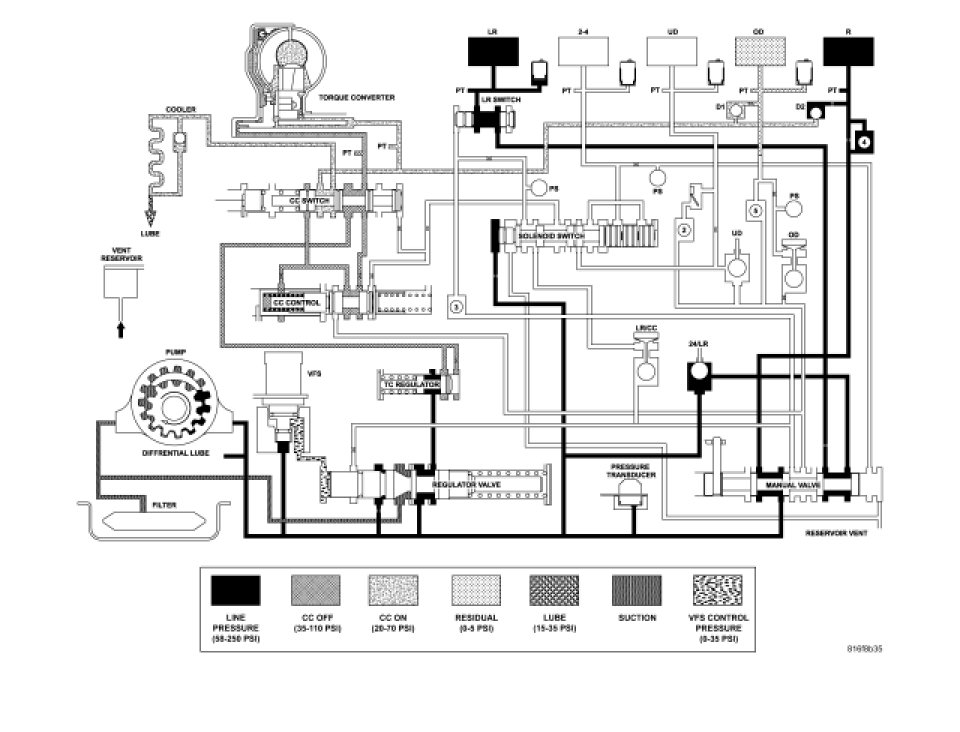

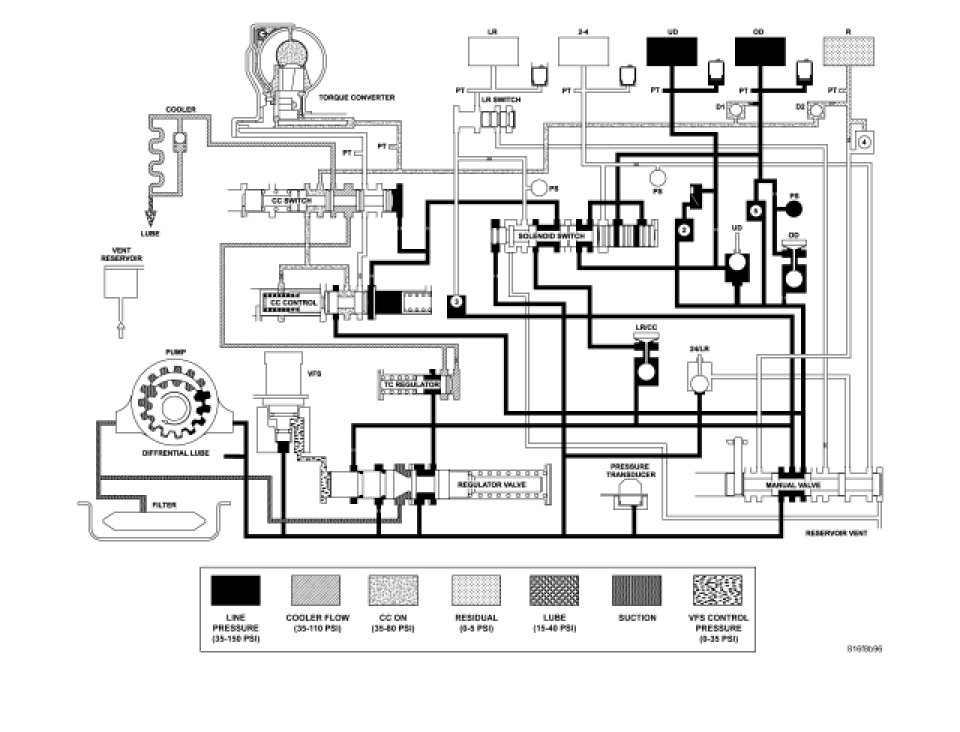

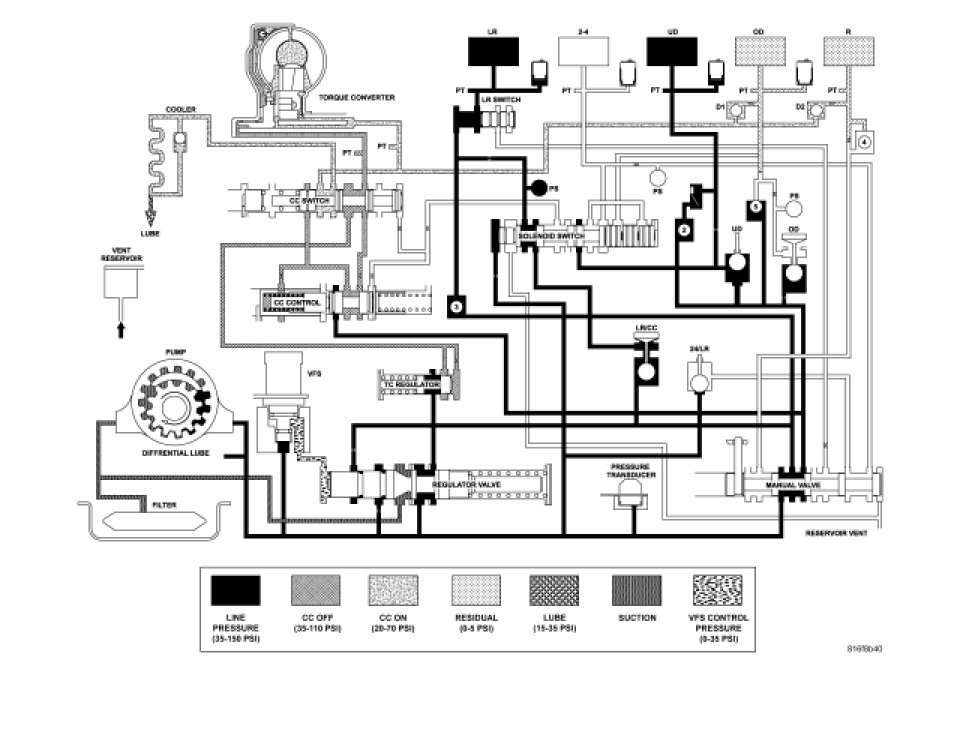

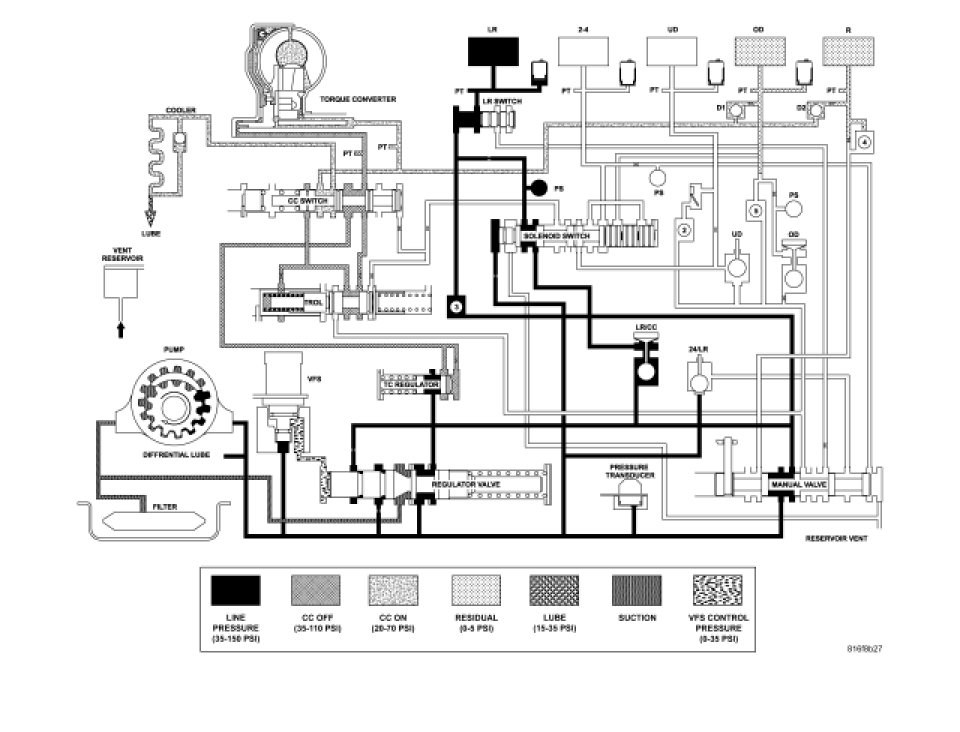

42RLE - With Variable Line Pressure






42RLE - WITH VARIABLE LINE PRESSURE
