Alarm Horn

Component ID: 544
Component : SIREN

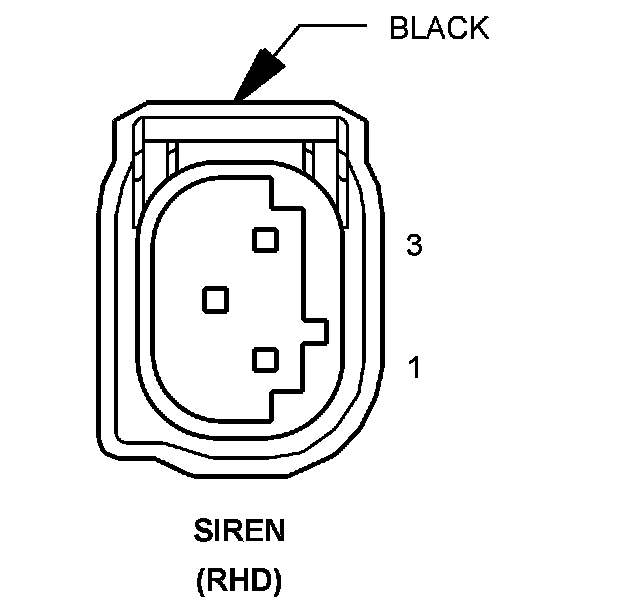

Connector:
Name : SIREN
Color : BLACK
# of pins : 3
Qualifier : (RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A117 20RD/DG
2 GROUND Z904 20BK/BR
3 SIREN SIGNAL CONTROL D96 20WT/LB

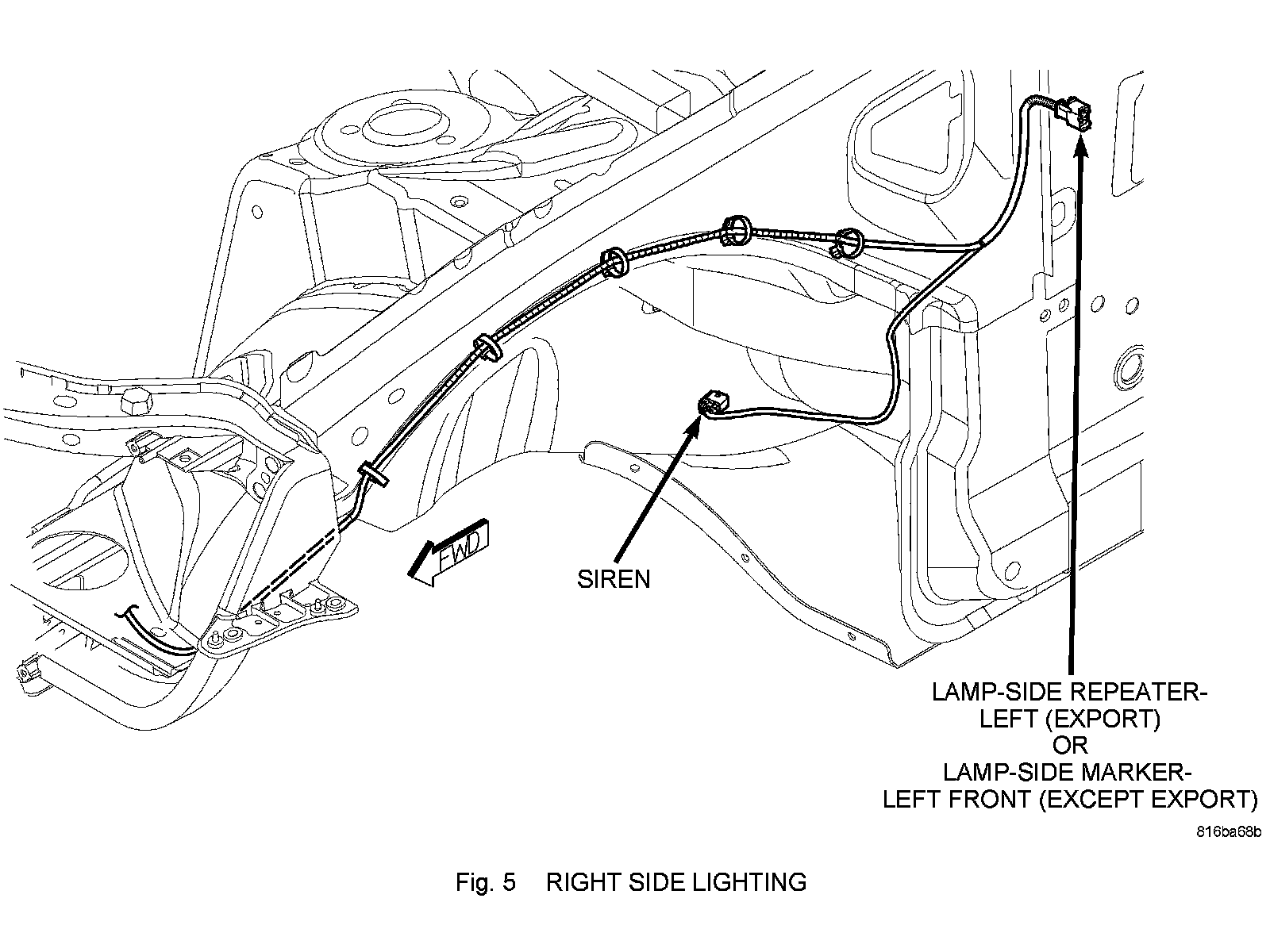

Component Location - 5
