Removal

REMOVAL
1. Move driver's seat to full-forward, full-upward position.
2. Disconnect battery negative cable from battery post and isolate.
3. Remove seat belt shield from driver's seat cushion left side trim.
4. Remove three screws fastening seat cushion side trim in place.
5. Lift side trim from seat and utilizing slack in seat belt, turn trim over.

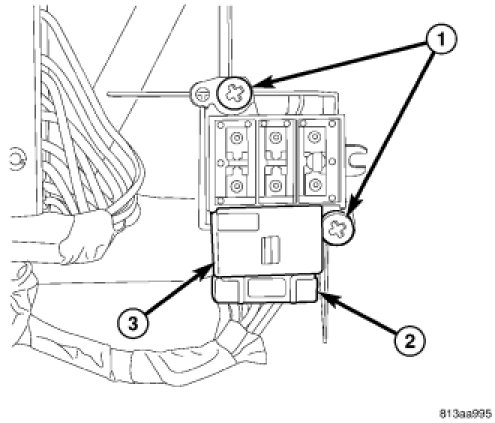

6. Disconnect wiring connector (2) from adjustable pedals switch (3).
7. Remove two mounting screws (1) and remove switch (3).
