Pedal Positioning Switch: Diagrams

Component ID: 564

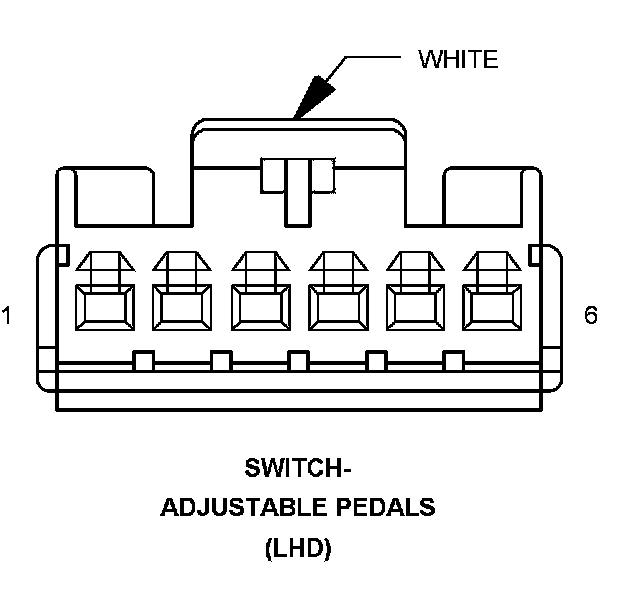

Component : SWITCH-ADJUSTABLE PEDALS

Connector:
Name : SWITCH-ADJUSTABLE PEDALS
Color : WHITE
# of pins : 6
Qualifier : (LHD)




Pin Description Circuit
1 - -
2 GROUND Z912 20BK/OR
3 ADJUSTABLE PEDALS MOTOR REARWARD P206 20LG/LB
3 ADJUSTABLE PEDALS SWITCH REARWARD Q103 20OR/LG
4 ADJUSTABLE PEDALS MOTOR FORWARD P205 20LG/WT
4 ADJUSTABLE PEDALS SWITCH FORWARD Q102 20OR/LB
5 GROUND Z912 20BK/OR
6 ADJUSTABLE PEDALS RELAY OUTPUT A72 20RD/OR
6 ADJUSTABLE PEDALS SWITCH GROUND Q101 20OR/LB
