Pedal Positioning Switch: Description and Operation

DESCRIPTION

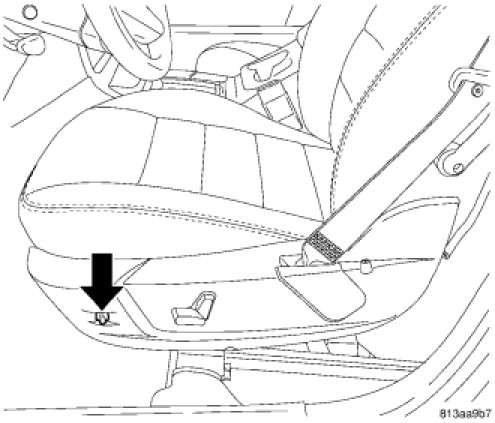

The adjustable pedals switch is located on the left side trim of the driver's seat cushion. Fore and Aft movement of the paddle-type switch allows front-to-rear travel of the adjustable pedals, up to approximately 76 mm (3 inches) total movement. Pushing the paddle forward moves the peddles away from the driver and vice-versa. Movement stops when the switch is released.


The switch actuates the electric motor-driven adjustable pedals mechanism through the memory seat module (MSM). MSM logic prevents pedal adjustment while the speed control is set and when the transmission is in Reverse.
