Installation

INSTALLATION

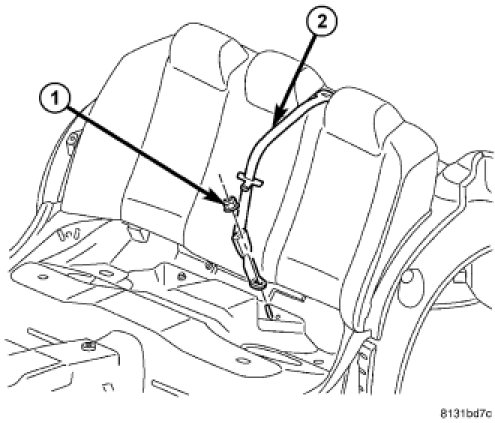

1. Place seat belt into position and install the seat belt anchor nut. Tighten nut to 32 Nm (24 ft. lbs.).

2. Place the seat cushion into position and push downward on the forward edge of the seat cushion to lock into position.

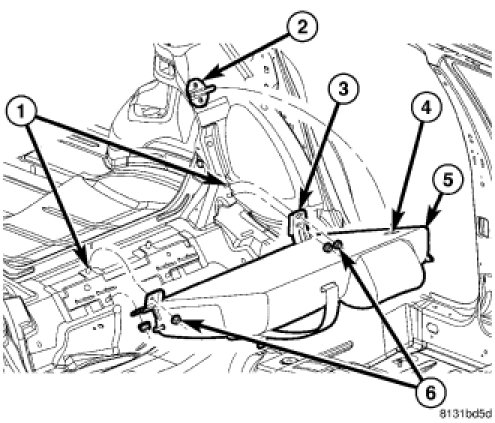

60/40 Seat Back - Wagon

60% SEAT BACK SIDE

1. With the 40% seat back removed.

2. Place 60% seat back (5) into position on the studs.

3. Fold the 60% section of the seat down.

4. Install the four nuts (6) attaching seat back (5). Tighten nuts to 57 Nm (42 ft. lbs.).

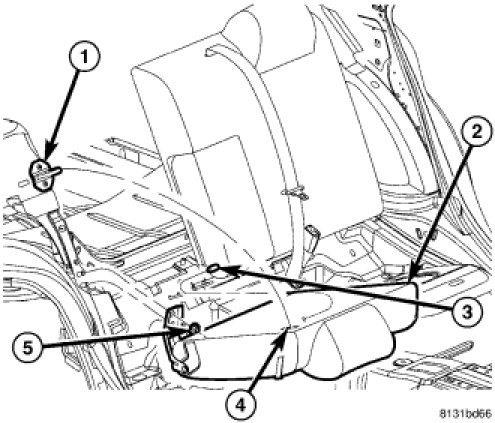

60/40 Seat Back - Wagon

40% SEAT BACK SIDE

1. Place the 40% section (2) into position.

2. Slide 40% seat back onto the pivot pin (3) located on the 60% seat back.

3. Install the two nuts (5) attaching seat back. Tighten nuts to 57 Nm (42 ft. lbs.).

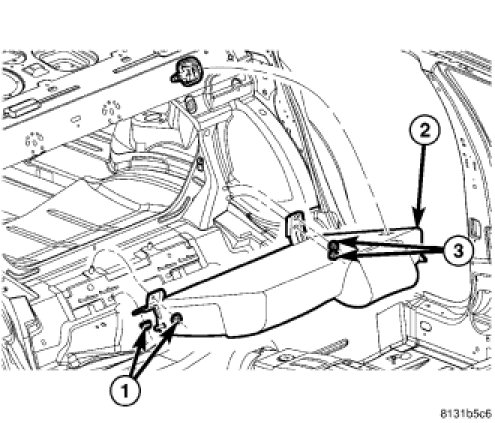

60/40 Seat Back Domestic Sedan

60% SEAT BACK SIDE

1. With the 40% seat back removed.

2. Place 60% seat back (2) into position on the studs.

3. Fold the 60% section of the seat down.

4. Install the four nuts (1) and (3) attaching seat back (2). Tighten nuts to 57 Nm (42 ft. lbs.).

60/40 Seat Back Domestic Sedan

40% SEAT BACK SIDE

1. Place the 40% section (3) into position.

2. Slide 40% seat back onto the pivot pin (1) located on the 60% seat back (2).

3. Install the two nuts (5) attaching seat back. Tighten nuts to 57 Nm (42 ft. lbs.).

60/40 Seat Back Export Sedan

60% SEAT BACK SIDE

1. Place the 40% section (3) into position onto the studs.

2. Fold the 40% section of the seat down.

3. Install the four nuts (4) attaching seat back (3). Tighten nuts to 57 Nm (42 ft. lbs.).
