Left Door Locks Inoperative - (LHD Only)

*LEFT DOOR LOCKS INOPERATIVE - (LHD ONLY)

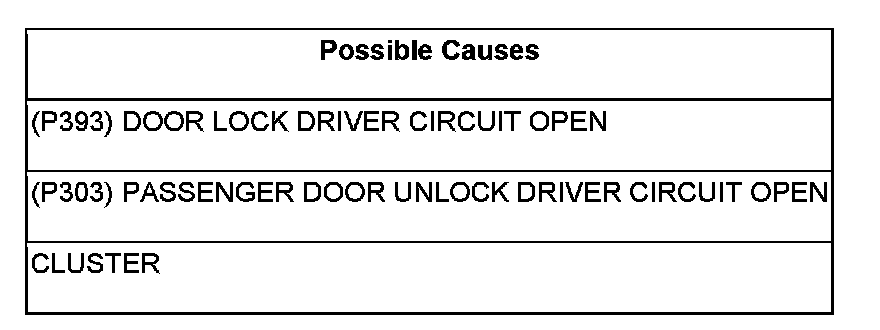

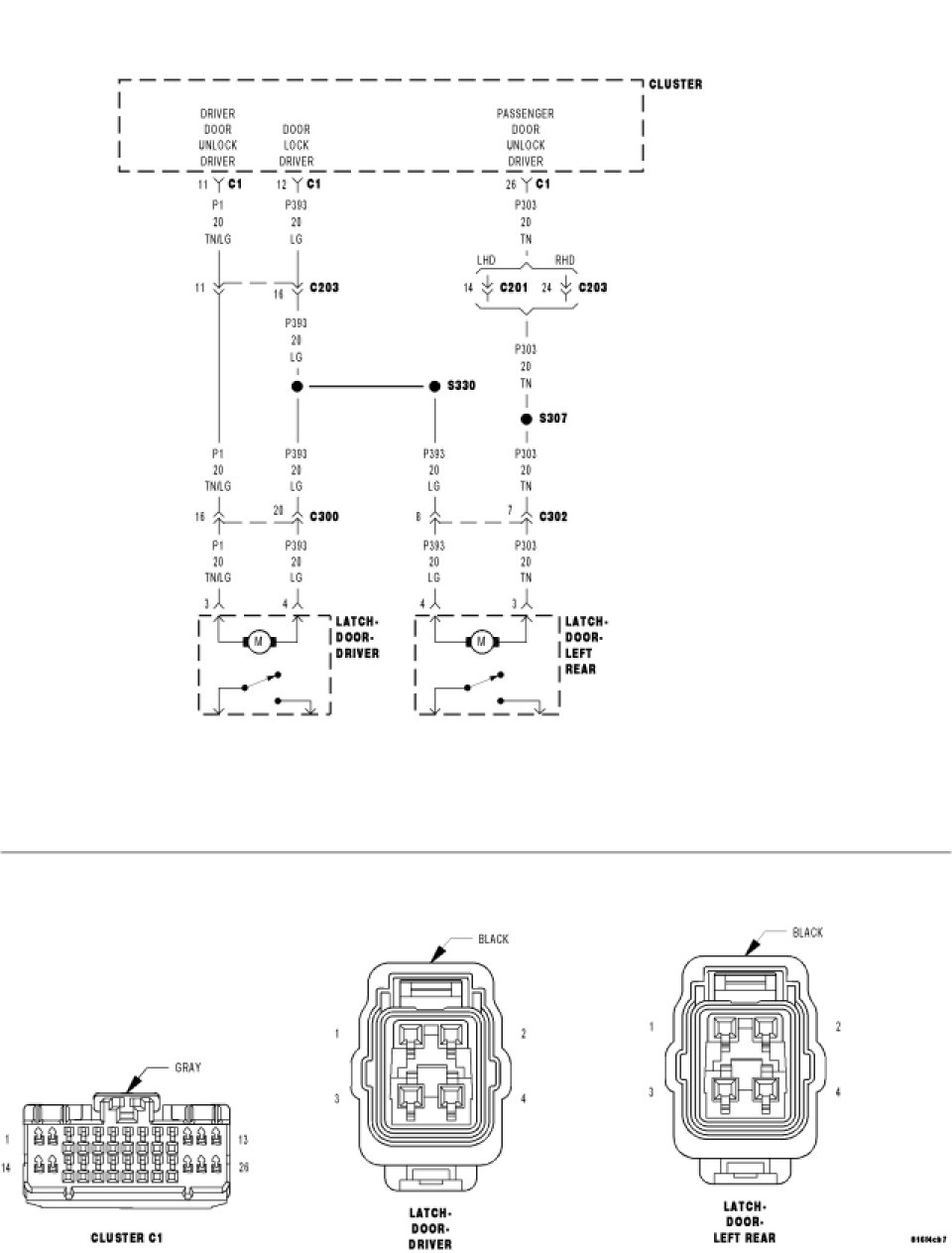

For a complete wiring diagram Refer to Diagrams/Electrical.





Theory of Operation

This test is only for Left Hand Drive vehicles because on the Right Hand Drive vehicles the Right Rear door lock is connected with the Left Front door and the Left Rear door lock is connected with the Right Front (driver) door.

Diagnostic Test

1.CHECK (P393) DOOR LOCK DRIVER CIRCUIT FOR AN OPEN





Turn the ignition off.

Remove the left door inner trim panel to gain access to the door latch connector.

Disconnect the Left Rear Door Latch connector.

Disconnect the Instrument Cluster C1 connector.

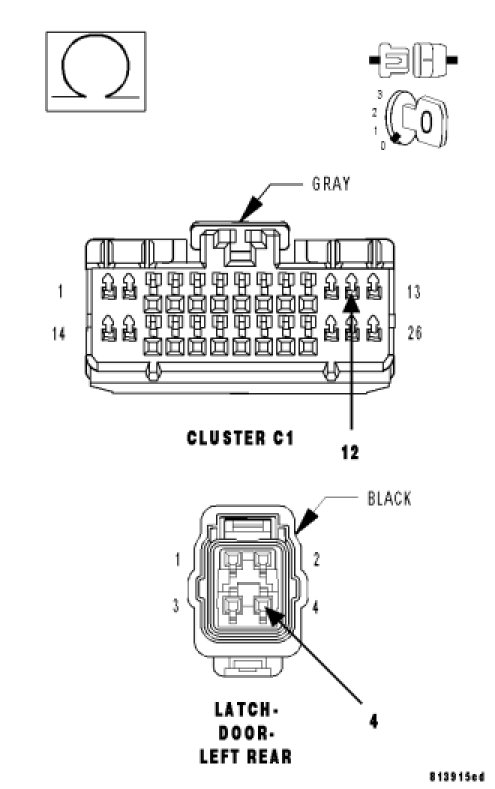

Measure the resistance of the (P393) Door Lock Driver circuit between the Cluster C1 connector and the Left Rear Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

- Go To 2

No

- Repair the (P393) Door Lock Driver circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2.CHECK (P303) PASSENGER DOORS UNLOCK DRIVER CIRCUIT FOR AN OPEN





Measure the resistance of the (P303) Passenger Doors Unlock Driver circuit between the Cluster C1 connector and the Left Rear Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

- Replace the Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the (P303) Passenger Doors Unlock Driver circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
