Latch-Door-Liftgate

Component ID: 228

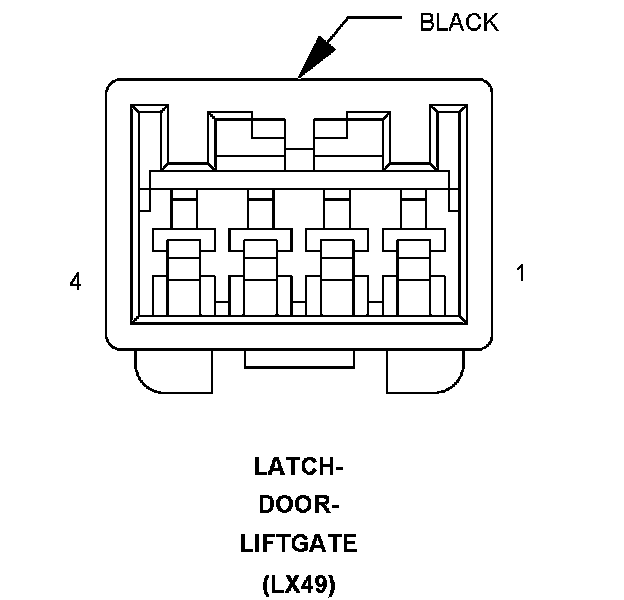

Component : LATCH-DOOR-LIFTGATE

Connector:
Name : LATCH-DOOR-LIFTGATE
Color : BLACK
# of pins : 4
Qualifier : (LX49)




Pin Description Circuit
1 DECKLID/LIFTGATE AJAR SWITCH SENSE G78 20VT/OR
2 GROUND Z914 20BK/GY
3 GROUND Z914 20BK/GY
4 DECKLID/LIFTGATE RELEASE DRIVER P31 20TN/YL

Component Location - 81

Fig. 81:
