Quarter Trim Panel - Removal

REMOVAL




1. Disconnect and isolate the battery negative cable.

2. Remove the rear seat cushion from the vehicle.

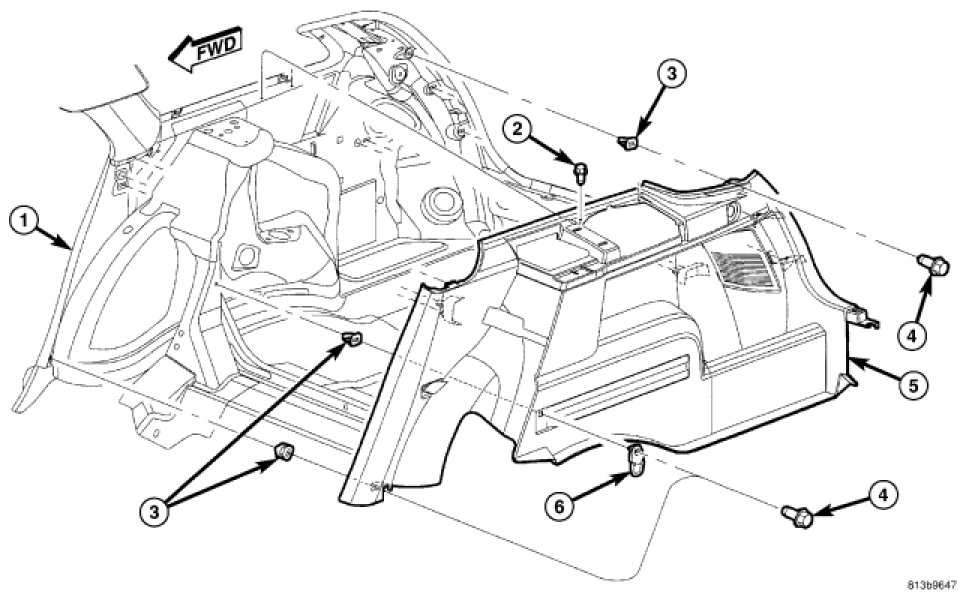

3. Remove the rear seat back side bolster from the quarter inner panel (1).

4. Remove the screw that secures the outboard rear seat belt lower anchor to the quarter inner panel.

5. Remove the trim from the upper D-pillar.

6. Remove the speaker bezel from the quarter trim panel.

7. Remove the two screws (2) that secure the quarter trim panel (5) to the speaker bracket above the rear wheel house.

8. Remove the screw that secures the tie-down loop, the liftgate scuff plate trim panel and the rear extension of the quarter trim panel to the top of the liftgate opening lower panel.

9. Remove the three screws (3) that secure the tie-down loop (6) and the quarter trim panel to the quarter inner panel.

10. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the quarter trim panel away from the side of the liftgate opening far enough to disengage the three spring clip retainers that secure the trim to the slots in the quarter inner panel behind the rear wheel house.

11. Move the back of the quarter trim panel away from the base of the upper D-pillar trim far enough to access and disconnect the body wire harness connector from the back of the auxiliary power outlet, if equipped.

12. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the quarter trim panel away from the base of the upper C-pillar trim far enough to disengage the spring clip retainer that secures the trim to the slot in the quarter inner panel.

13. Lift the quarter trim panel up and over the outboard rear seat belt retractor on the top of the rear wheel house while feeding the loose belt webbing and lower anchor through the retractor clearance hole in the top of the panel.

14. Remove the quarter trim panel from the vehicle through the liftgate opening.
