Lower

LOWER

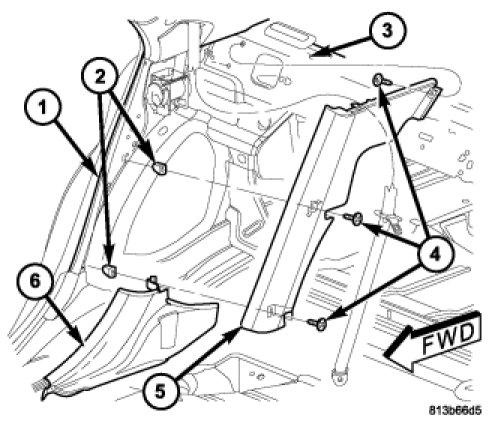

1. Remove the rear seat cushion from the vehicle.

2. Remove the rear seat back side bolster from the quarter inner panel (1).

3. Remove the screw (4) that secures the upper end of the lower C-pillar trim (5) to the rear shelf panel (3).

4. Remove the two screws that secure the lower C-pillar trim to the quarter inner panel.

5. Remove the lower C-pillar trim from the quarter inner panel.
