Removal

LOWER




1. Loosen the front door sill portion of the lower cowl trim at the rear of the front door opening for access to the forward lower B-pillar trim screw.

2. Loosen the front of the scuff plate trim from the rear door sill for access to the rearward lower B-pillar trim screw.

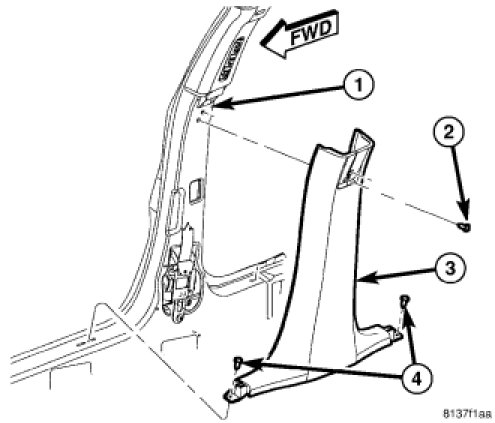

3. Move aside the seat belt webbing to access and remove the two screws (2) that secure the upper end of the lower B-pillar trim (3) to the inside of the B-pillar (1).

4. Remove the two screws (4) that secure the lower end of the B-pillar trim to the front and rear door sills.

5. Disengage the seat belt webbing from the slot in the upper end of the lower B-pillar trim through the slit in the trim and remove the trim from the inside of the B-pillar.
