Installation

DODGE




1. Before proceeding with the following repair procedure, review all warnings and cautions.

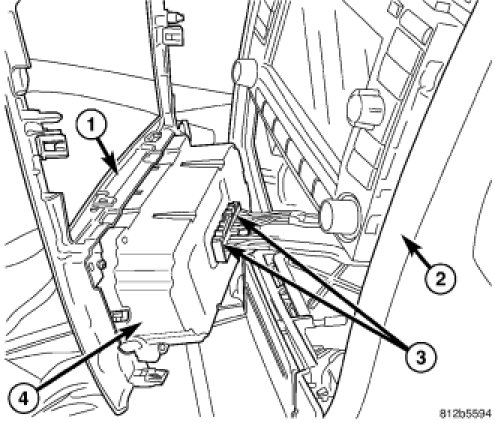

2. Position the center bezel (1) near the instrument panel (2).

3. Connect the electrical connectors (3) to the A/C - heater control (4) and the switch pod.

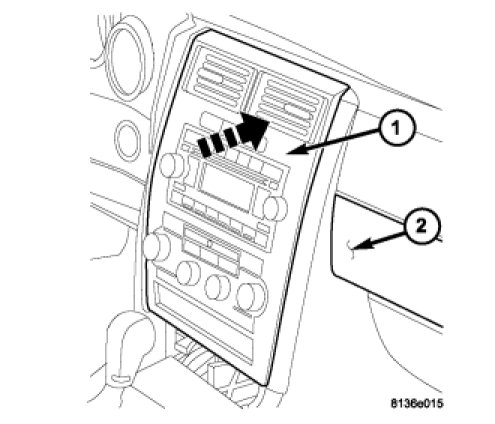

4. Install the center bezel (1) onto the instrument panel (2) and carefully push on the outside edges of the center bezel to fully seat the snap clip retainers into the instrument panel.
