Removal






REMOVAL




1. Open the deck lid.

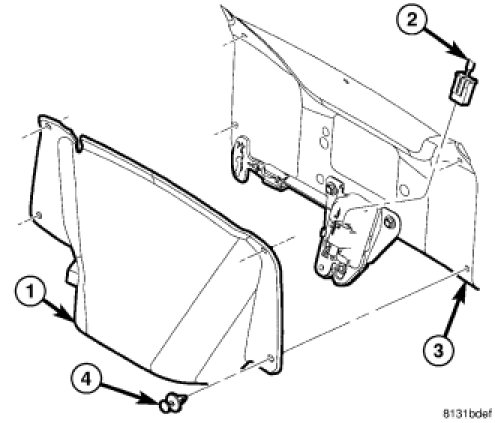

2. Remove the four push-pin fasteners (4) that secure the latch cover (1) to the deck lid inner panel (3).

3. Disengage the emergency latch release T-handle from the cover.

4. Remove the cover from the deck lid inner panel.
