U1415

U1415-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION DATA

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

With the ignition on. The ORC on board diagnostics loads the ORC Configuration Data from the FCM CAN Bus message.

- Set Condition:

This DTC will set if the CAN Bus message was received but the information is invalid or corrupt.





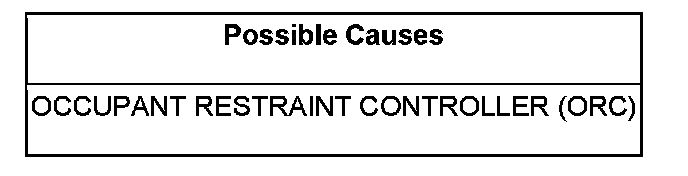

Diagnostic Test

1.OCCUPANT RESTRAINT CONTROLLER

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

WARNING: If the Occupant Restraint Controller is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and personal injury or death.

Disconnect the ORC harness connector(s).

NOTE: Check connectors - Clean and repair as necessary.

Repair

- Replace the Occupant Restraint Controller.
- Perform the *ORC VERIFICATION TEST-VER 1. Occupant Restraint Controller (ORC) Verification Test
