Speed Control

U0431-IMPLAUSIBLE DATA RECEIVED FROM FCM

For a complete wiring diagram Refer to Diagrams/Electrical.

- When Monitored:

Continuously monitored with the engine running and the ACC Module in normal mode.

- Set Condition:

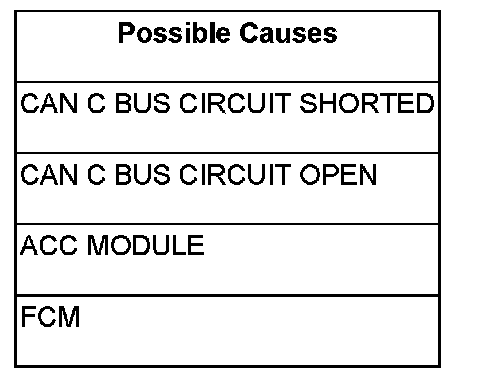

The ACC Module receives an implausible (default/error value or toggle error or parity error are present) message from the FCM for 600 millisecond. The ACC module will disable the Adaptive Cruise Control (ACC) system and the ACC UNAVAILABLE message will display in the CCN. Once the DTC goes to stored, the ACC system will return to normal operation. The DTC will be cleared after the ACC Module sees 100 consecutive key cycles of the STORED DTC.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1.ACTIVE DTC

NOTE: Diagnose all CAN B and C communication failures before continuing.

Ignition on, engine not running.

With a scan tool, read ACC DTCs.

Is the DTC active at this time?

Yes

- Go To 2

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors, pay particulate attention the CAN circuits.
- Perform the ACC MODULE VERIFICATION TEST. Adaptive Cruise Control (ACC) Verification Test

2.FCM ACTIVE ON THE CAN C BUS

With the scan tool, select ECU View.

Verify that the FCM active on the bus.

Is the FCM active on the bus?

Yes

- Go To 3

No

- Refer to Communications.

3.DTCS STORED OR ACTIVE IN THE FCM

Are any DTCs active or stored in the FCM Module?

Yes

- Perform the diagnostics for the DTCs.

No

- Replace and program the ACC Module.
- Perform the ACC MODULE VERIFICATION TEST. Adaptive Cruise Control (ACC) Verification Test
